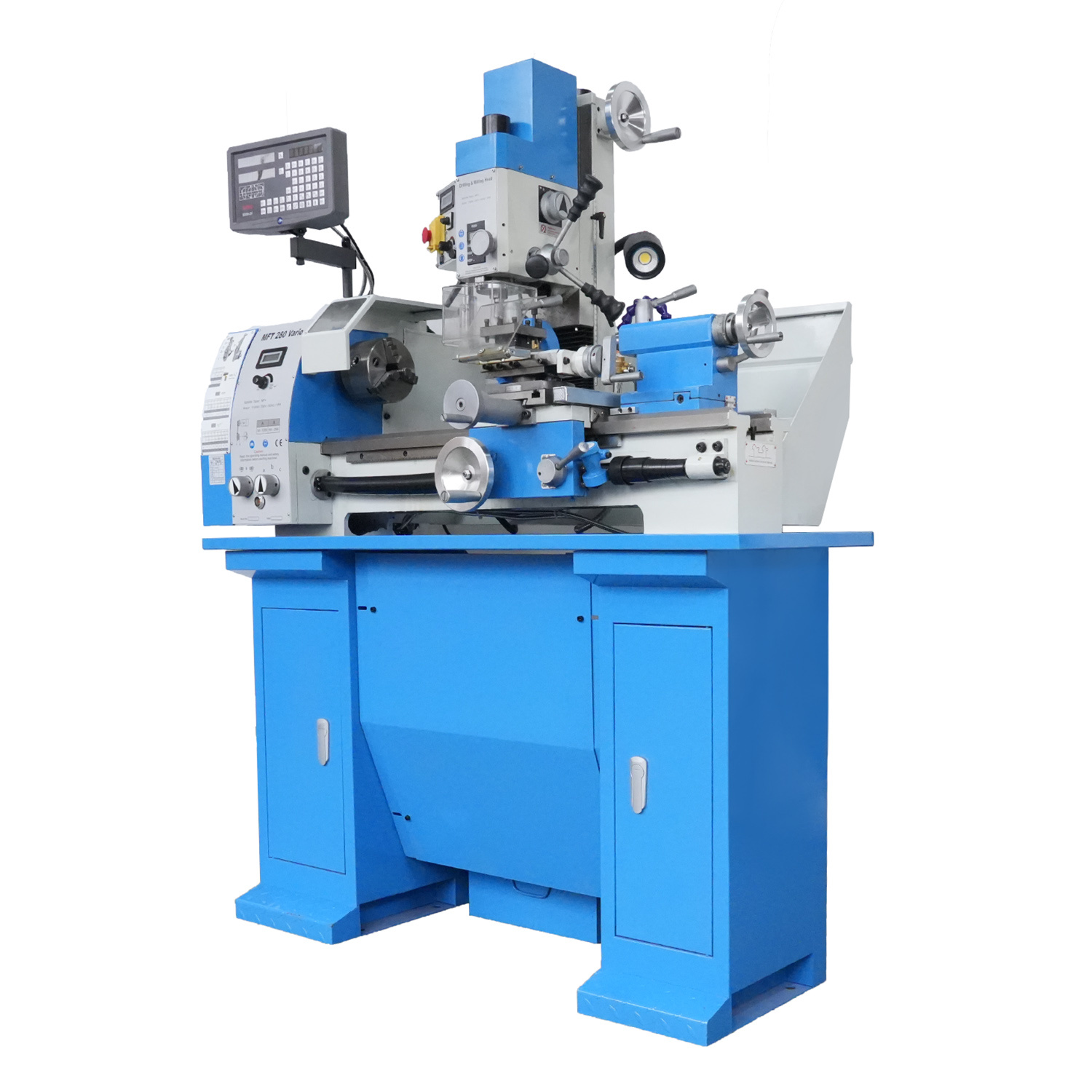

Mini Lathe Mill Drill Combo Combination Mini Lathe Milling Drilling Machine
| Quantity: | |
|---|---|
-
Online After-Sales Service
-
1 Year
-

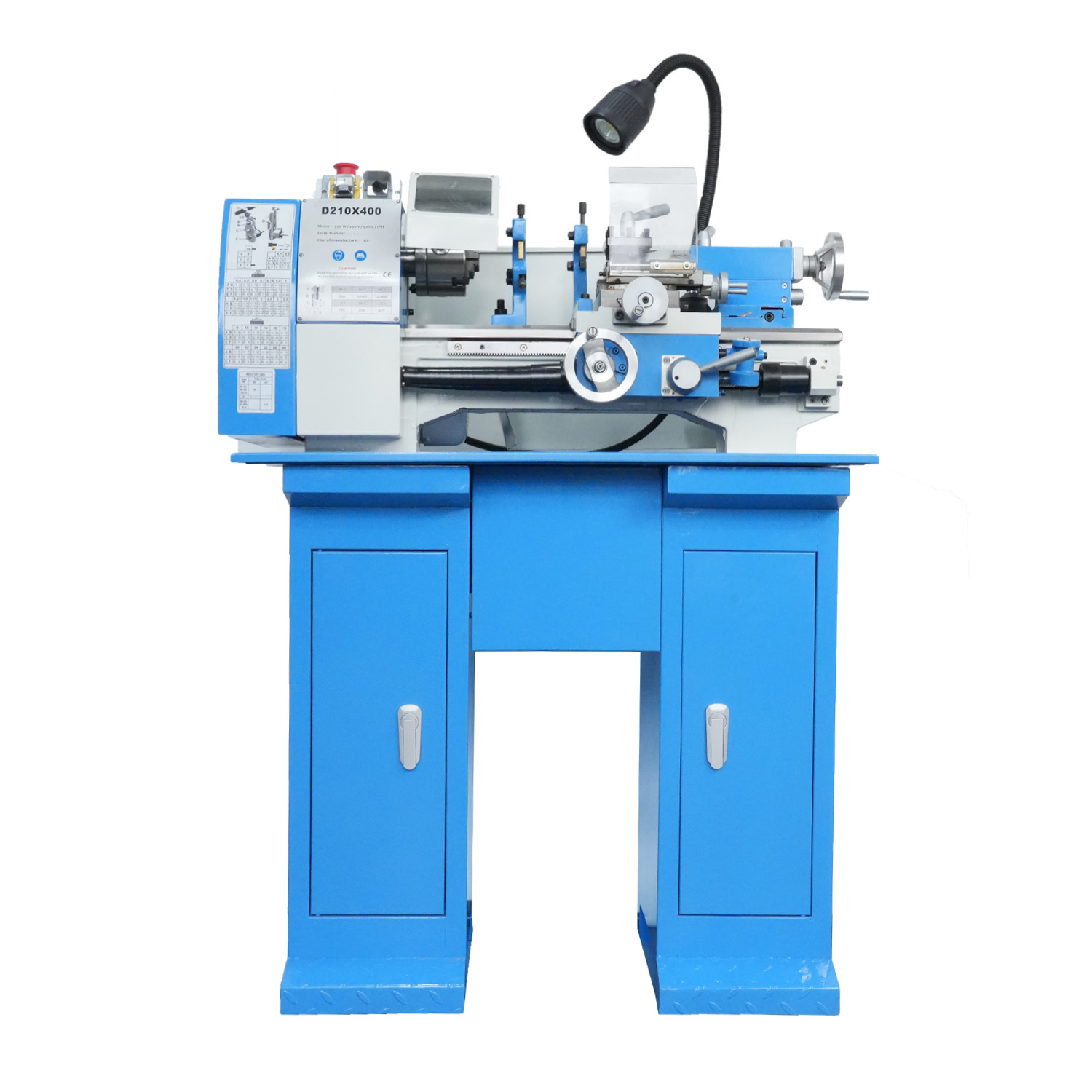

Horizontal Lathe
-
Chuck Lathe
-
Horizontal Guide Rail
-
Horizontal Guide Rail
| Model | MFT240VARIO | ||
| Max.sawing over bed | 250mm | Distance between centers | 550mm |
| Swing over cross slide | 150mm | Width of bed | 135mm |
| Taper of spindle bore | MT4 | Spindle bore | 26mm |
| Range of spindle speeds | 50-2500rpm | Range of longitudinal feed | 0.07-0.40mm/r |
| Range of inch threads | 8-56TPI | Range of metric threads | 0.2-4mm |
| Taper of tailstock quill | MT2 | Motor power | 1100W |

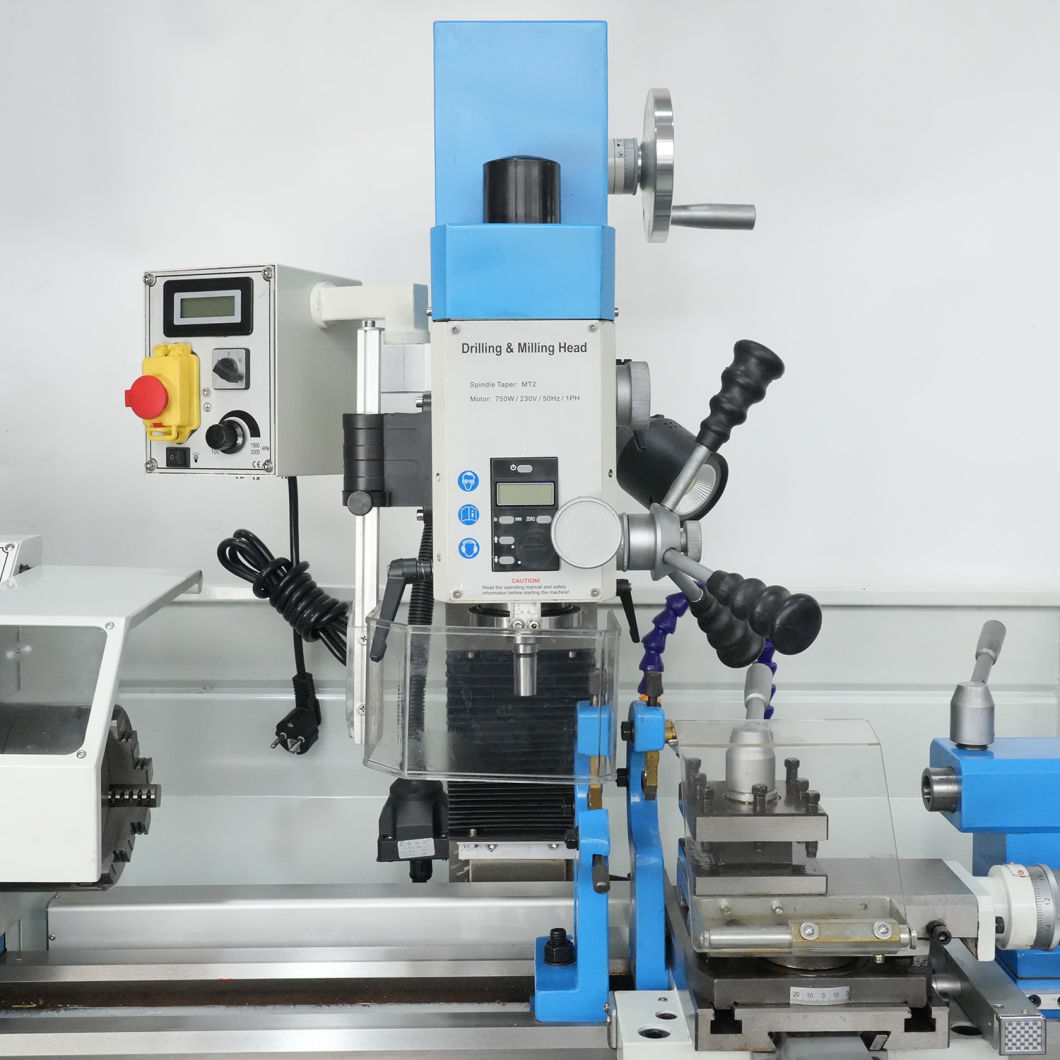

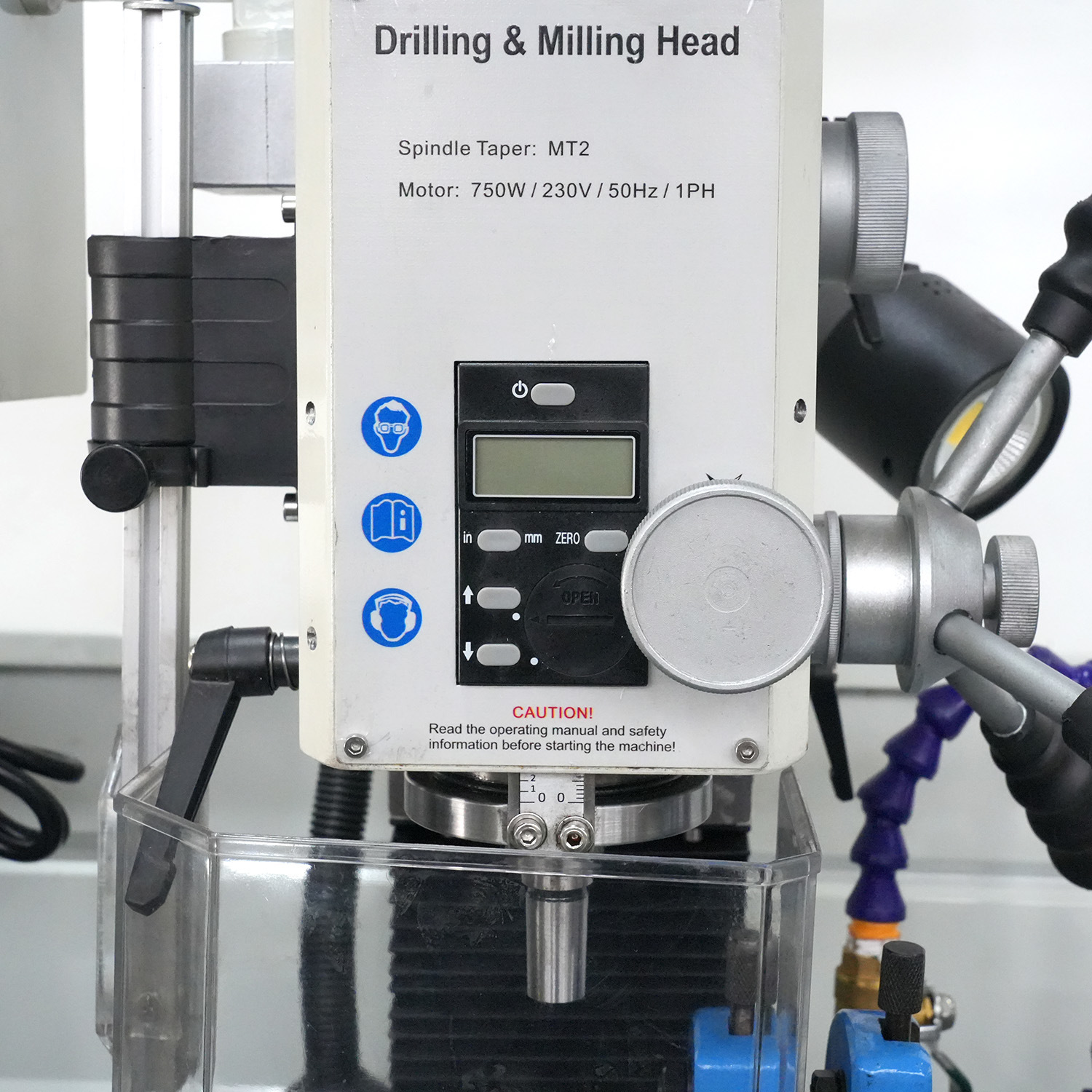

| Drilling & Milling Head | Max.drilling capacity | Max.Φ16mm | |
| Milling cap.of cutter head | Max.52mm | Milling cap.of endmillcutter | Max.16mm |
| Taper of spindle bore | MT2 | Sleeve travel | 52mm |
| T-slot size | 10mm | Range of spindle speeds | 50-3000rpm |
| Max.distance spindle to table | 280mm | Working range | 175mm |
| Motor power | 600W | Net weight | 180kg |

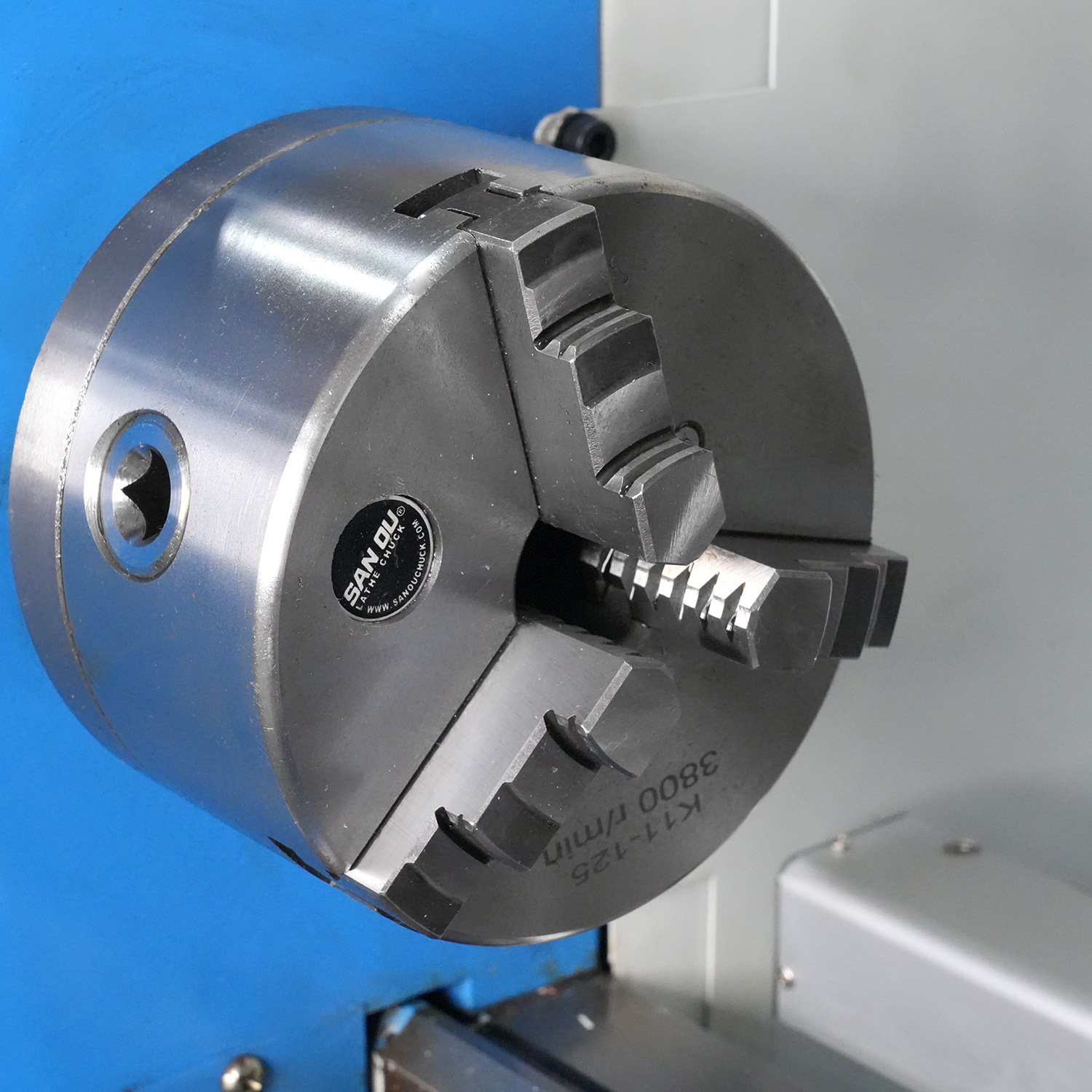

| Speed display | 3-jaw chunk Φ125 | Splash guard | Chip tray | Cover for chunk protection | Tool holder protection |
| Center MT4/MT2 | Change gears | Drawbar M10 | Morse taper MT2/B16 | Drill chunk B16 | Toolbox & tools |

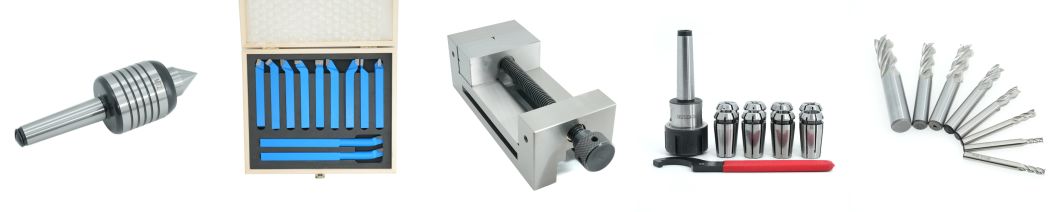

| Four-jaw chunk Φ125/Φ160 | Follow rest | Steady rest | Face plate | Live center MT4/MT2 | Quick change tool post | Halogen working lamp |
| Keyless chunk 1-13mm/B16 | Milling chunk | Precision vice | Coolant pump | Mill cutter | Collect chunk | Stand |
- The most popular and widely versatile combination machine: This combination machine is highly sought after for its versatility and ease of operation across a wide range of applications

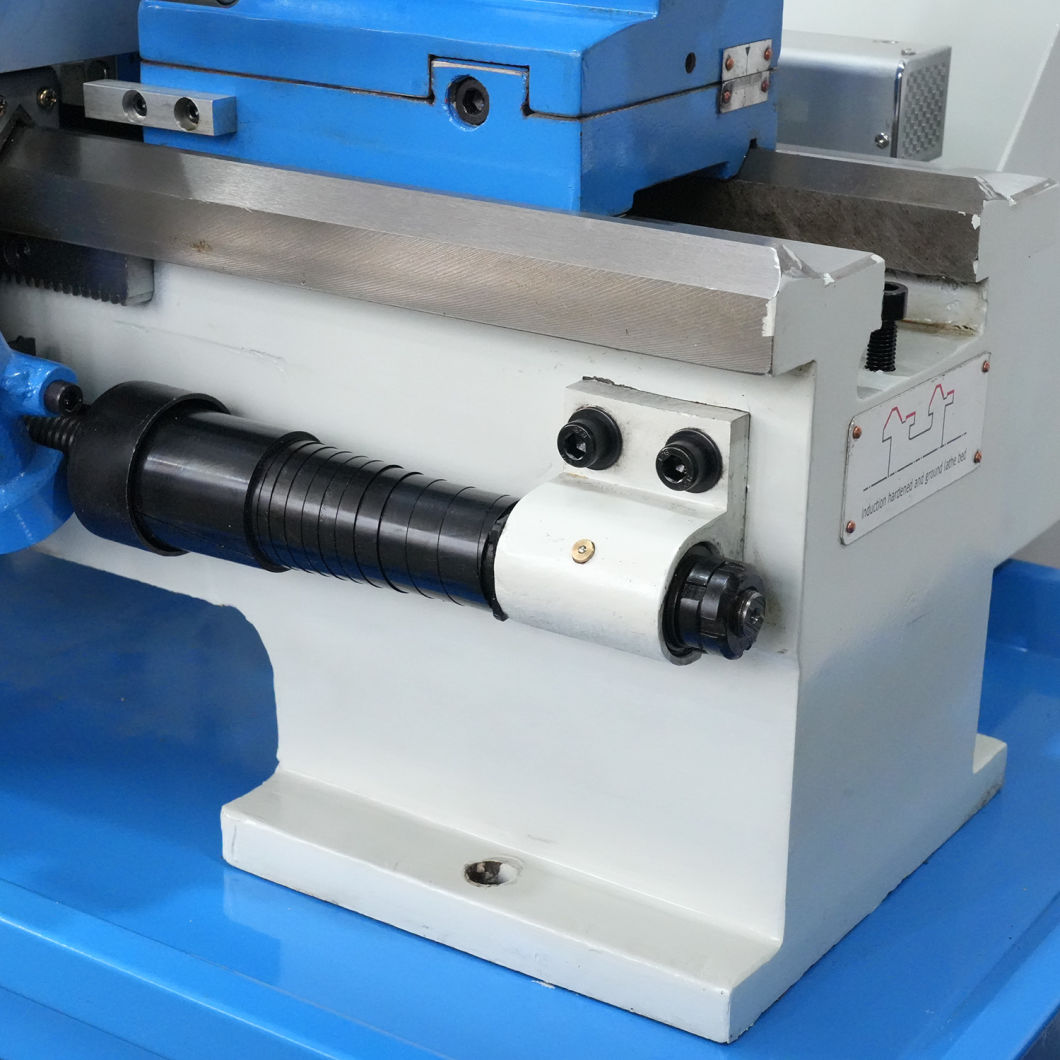

- Induction-hardened precision bedway
- Powerful motor for efficient performance

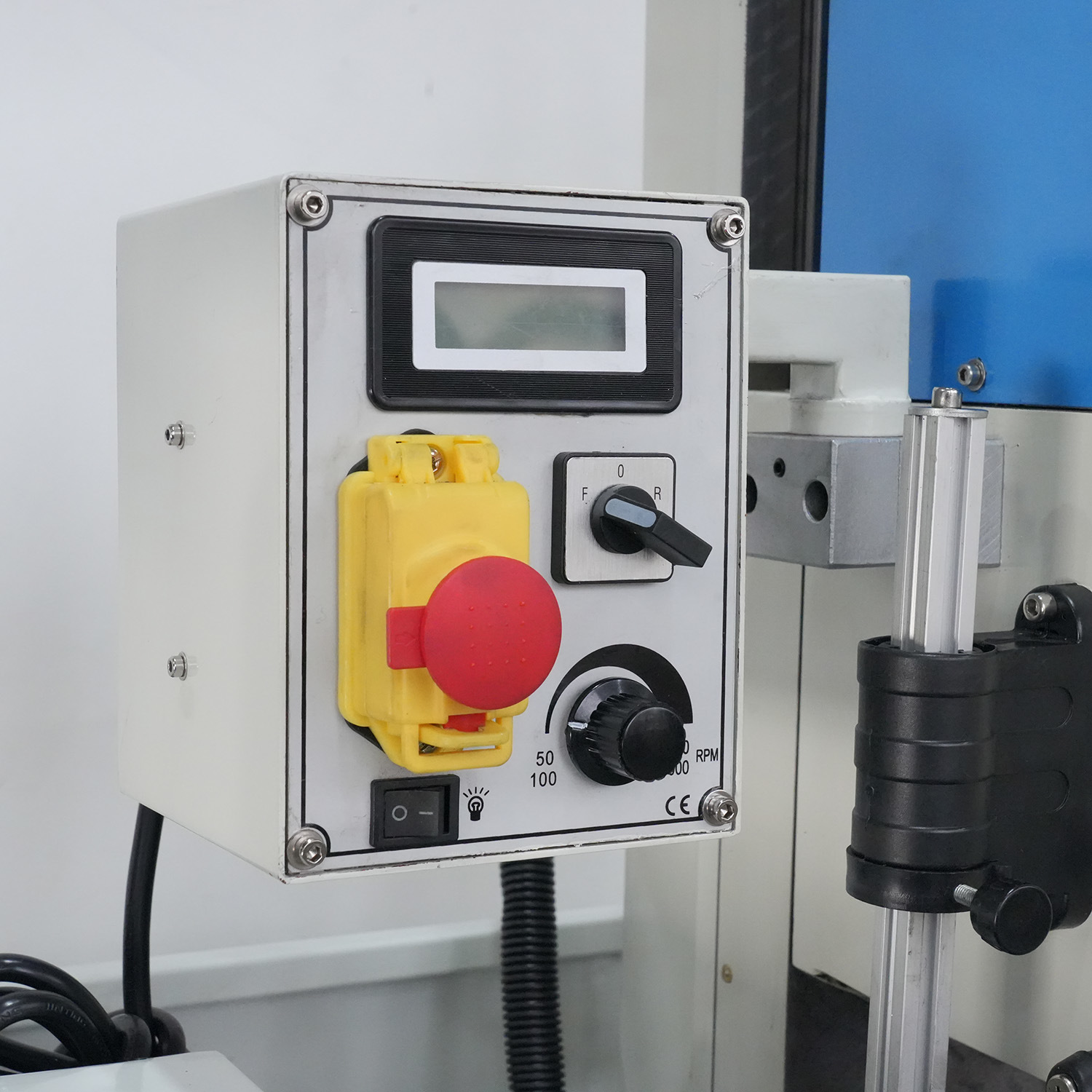

- Euro-safety magnetic switch or lock key switch for enhanced safety
- High-precision spindle ensures accuracy in machining

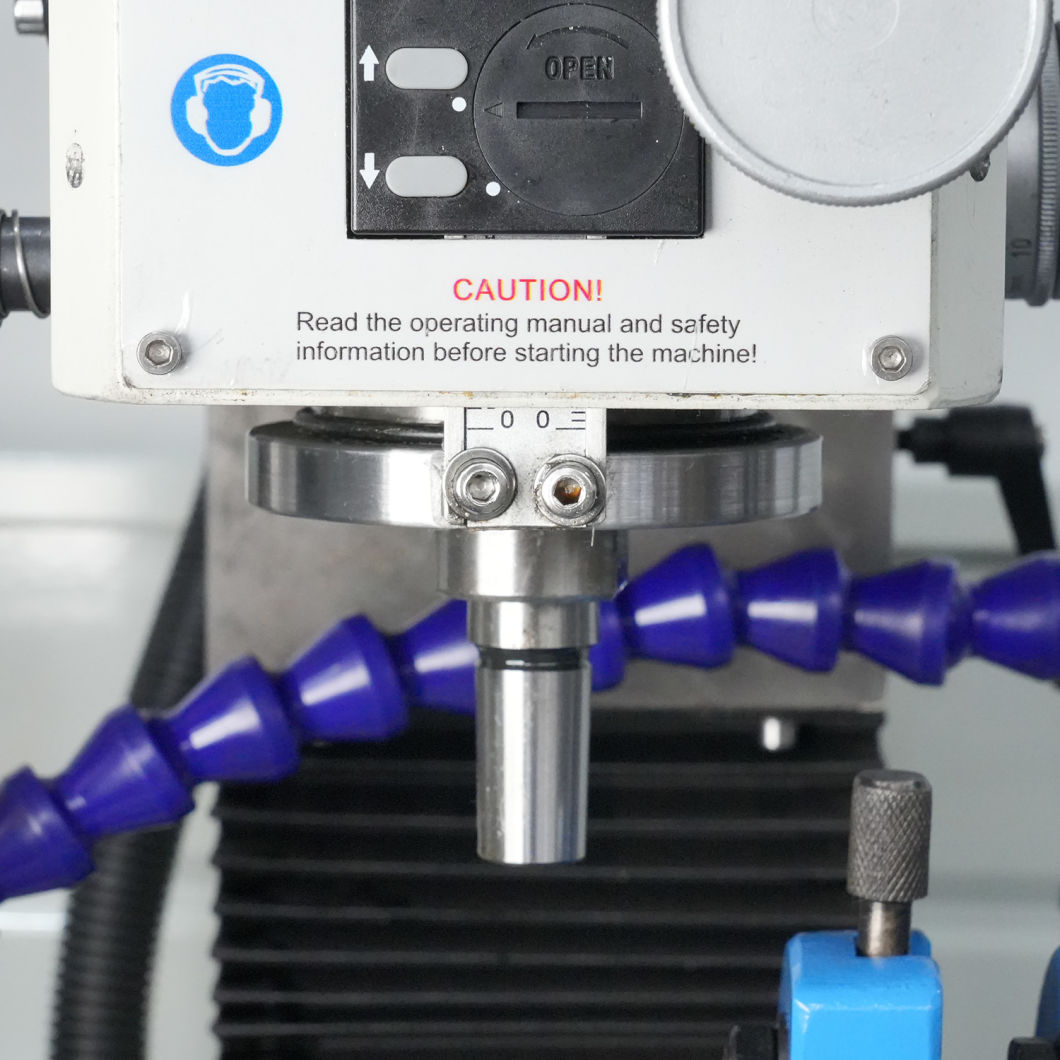

- Precision bored and honed milling head for reliable performance
- Head swivels up to ±90° for versatile machining angles

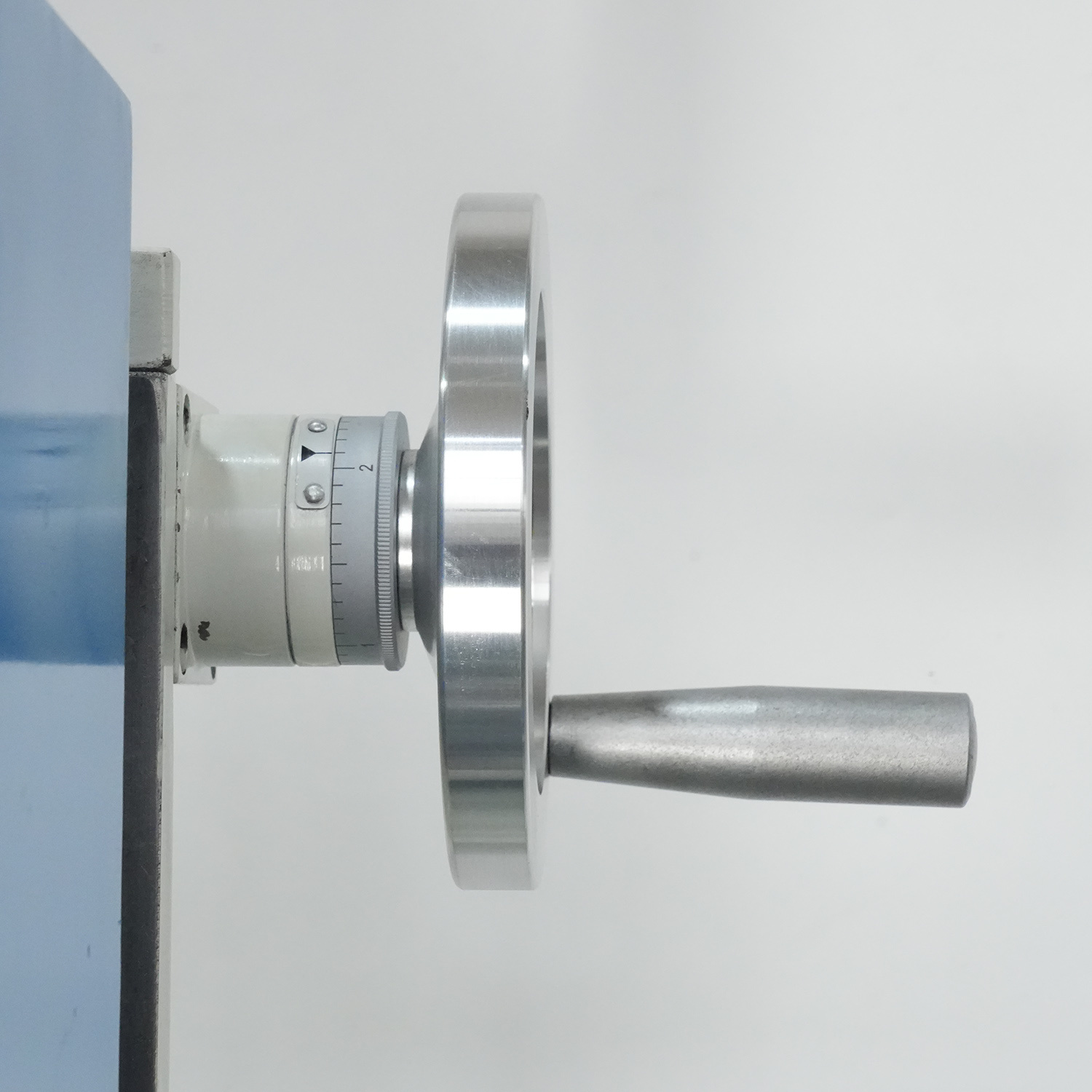

- Spindle micro-feed precision and lever down feed for precise control
- Accurate positioning, strong rigidity, and powerful cutting capabilities
- Gear drive system for smooth operation and reduced noise levels

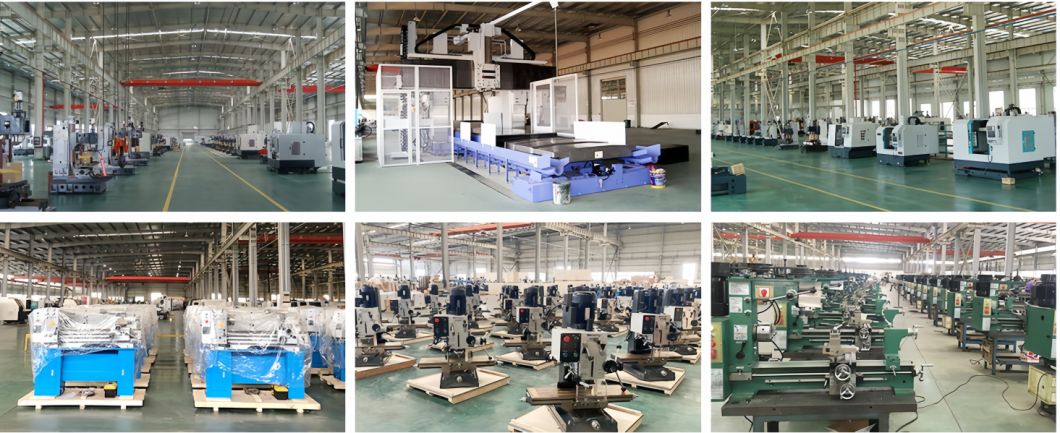

Company Profile:

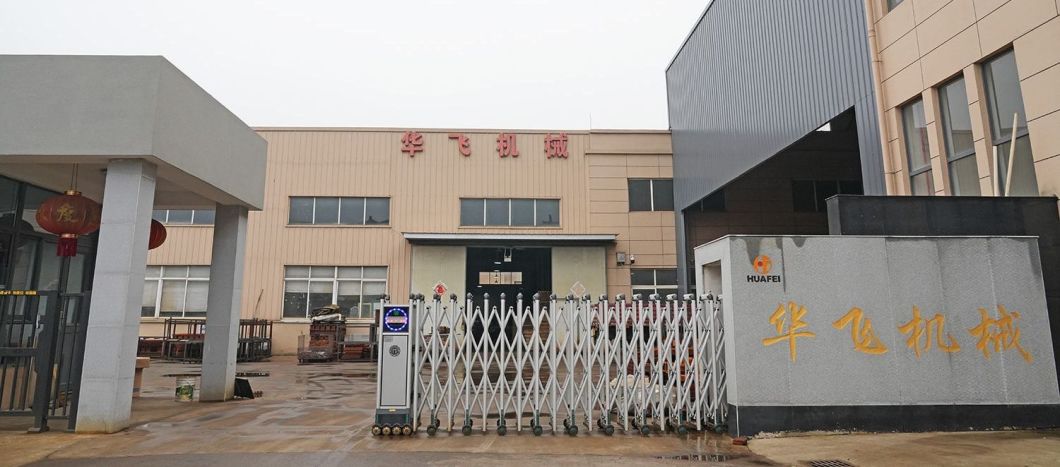

The Yangzhou Huafei General Machine Factory is located in the historical city Yangzhou suburb, already have 20 years history. We specialized produce each kind of series lathe, driling & milling machine, metal circular saw,multi-function lathe.The product exports to USA,Japan,Germany, France, Holland, Russia and U.K.etc,more than 50 countries and the area.
Our factory registered capital 10,000,000 Yuan, fixed asset 20,000,000 Yuan, each kind of specialized production equipment more than 200 sets, staff more than 300 peoples. We have the ability of independent design, making the machinery, the professional contingent and equipment. Besides provides the standard product, we may carry on the design and the production according to the customer request. We have the confidence, have able to produce the quality first-class product and provide the first-class service. We want in front of the customer, their needs is our diligently direction.
Management ldea:
Take the good faith as this, depend on the scientific management, produce the first- class product, struggle the international market.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?

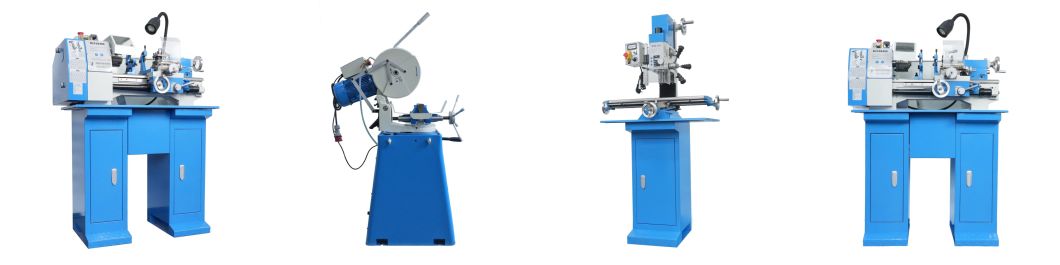

A: We specialized in all kinds of machines ,such as LATHE ,CIRCULAR METAL SAW ,DRILLING & MILLING MACHINE,MULTI-FUNCTION LATHE and so on .
3: What about the quality of the machine? and after-sales service?
A : Our machine warranty period is 3 years,and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set . (Only some low cost machines will be more than 1 set )
