Horizontal Lathe
-
Chuck Lathe
-
Horizontal Guide Rail
-
Single-Tool Holder Lathe
-
Electric
-
Artificial

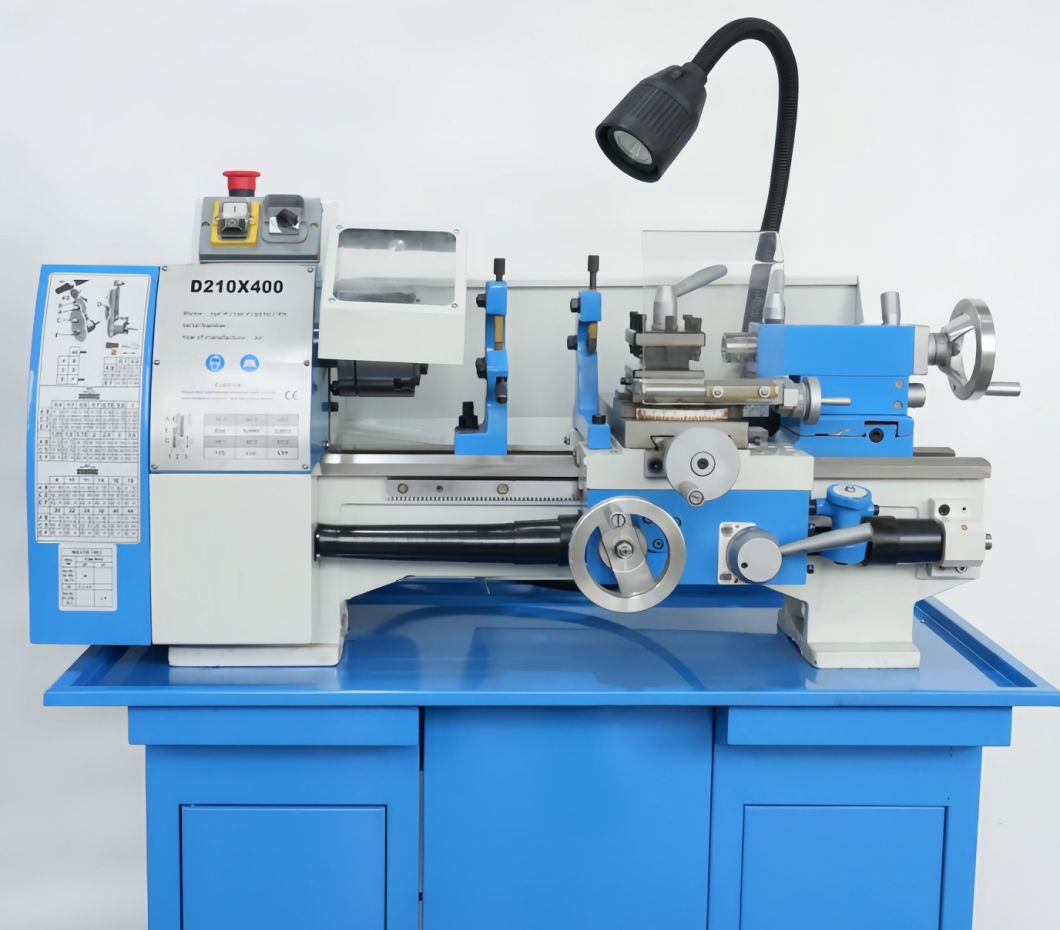

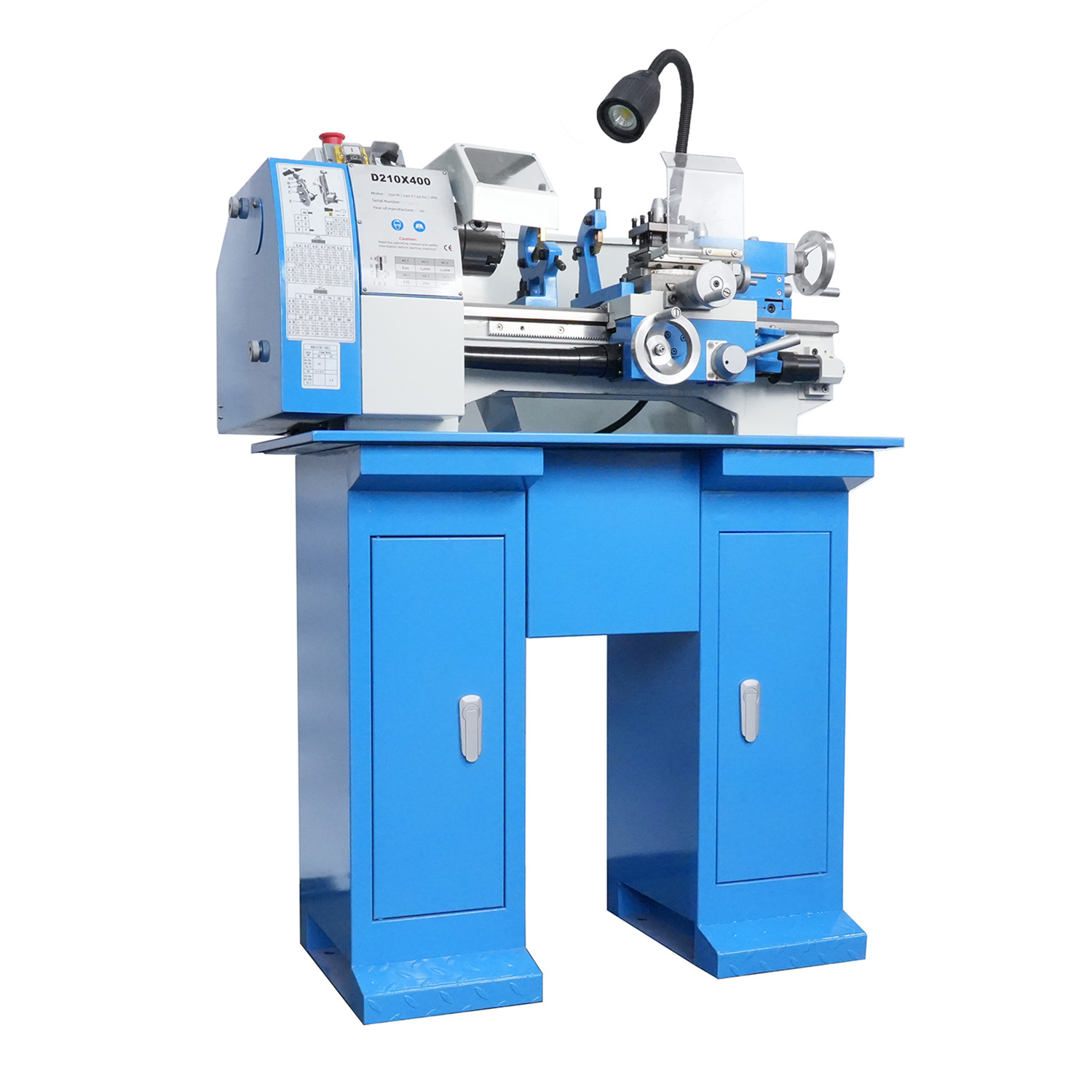

| Model | TURN210x400VARIO | TURN250x550VARIO |
| Max.swing over bed | 210mm | 250mm |
| Distance between centers | 400mm | 550mm |
| Spindle bore | 21mm | 21mm |
| Taper of spindle bore | MT3 | MT3 |
| Rang of spindle speeds(6 steps) | 50-2500rpm | 50-2500rpm |
| Taper of tailstock quill | MT2 | MT2 |
| Metric threads can be cut | 0.4-3.5mm | 0.4-3.5mm |
| Inch threads can be cut | 8-44TPI | 8-44TPI |
| Motor power | 750W | 750W |
| Weight(NW/GW) | 110/130Kg | 125/150Kg |
| Package size(LxWxH) | 980x560x580mm | 1200 x 560 x 580mm |

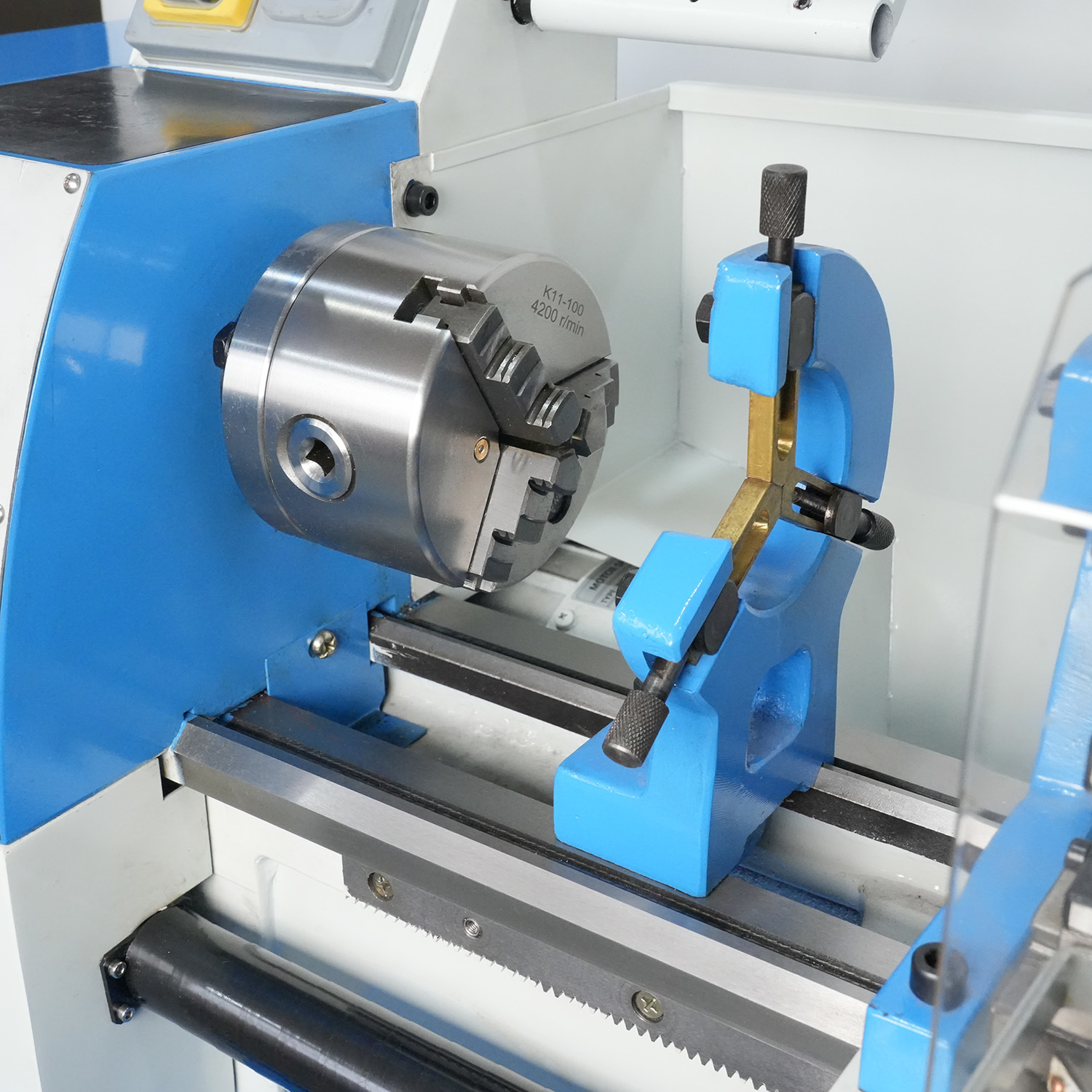

| 3-jaw chuck Φ100/Φ125 | Splash guard | Chip pan | Lathe chunk protection | Tool holder protection |

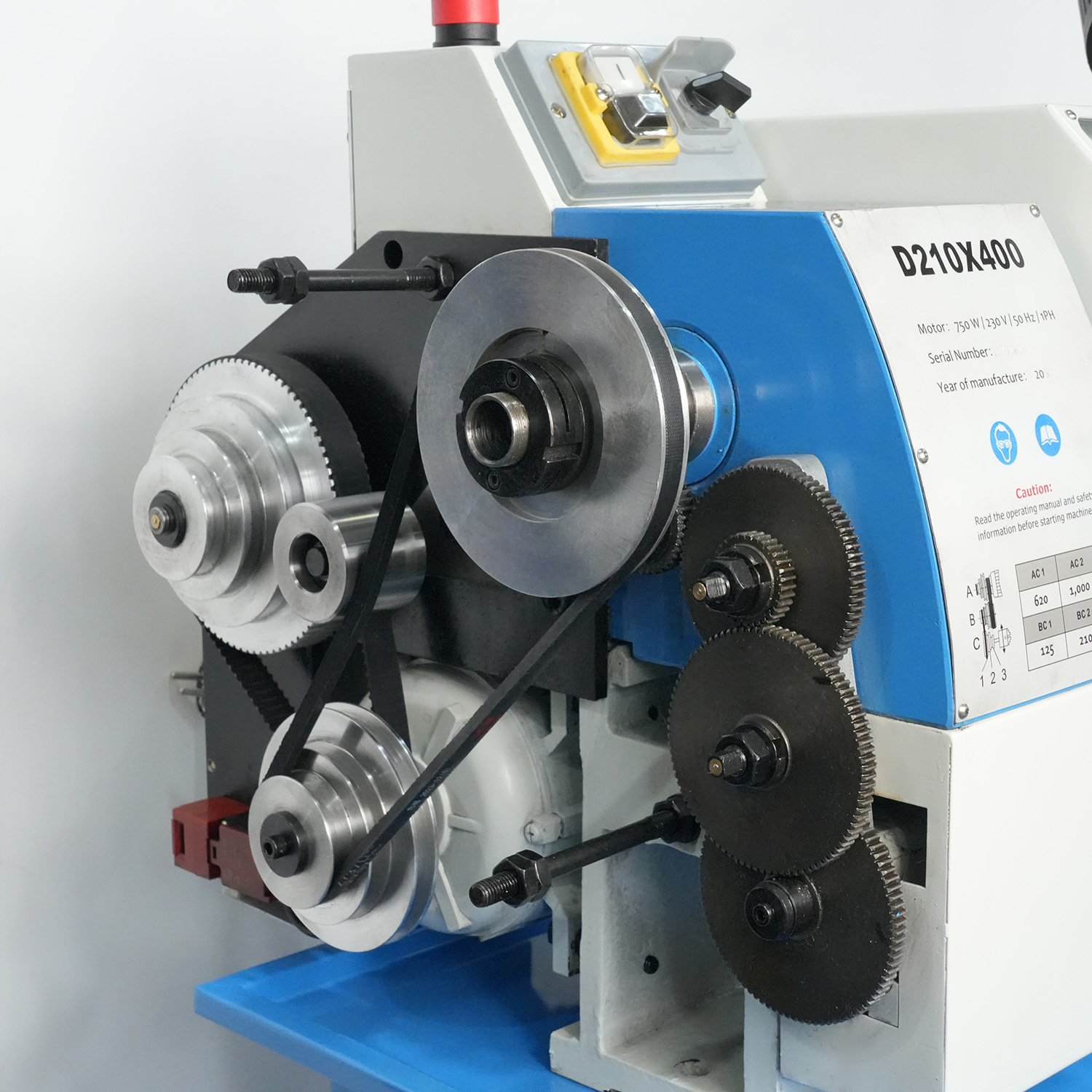

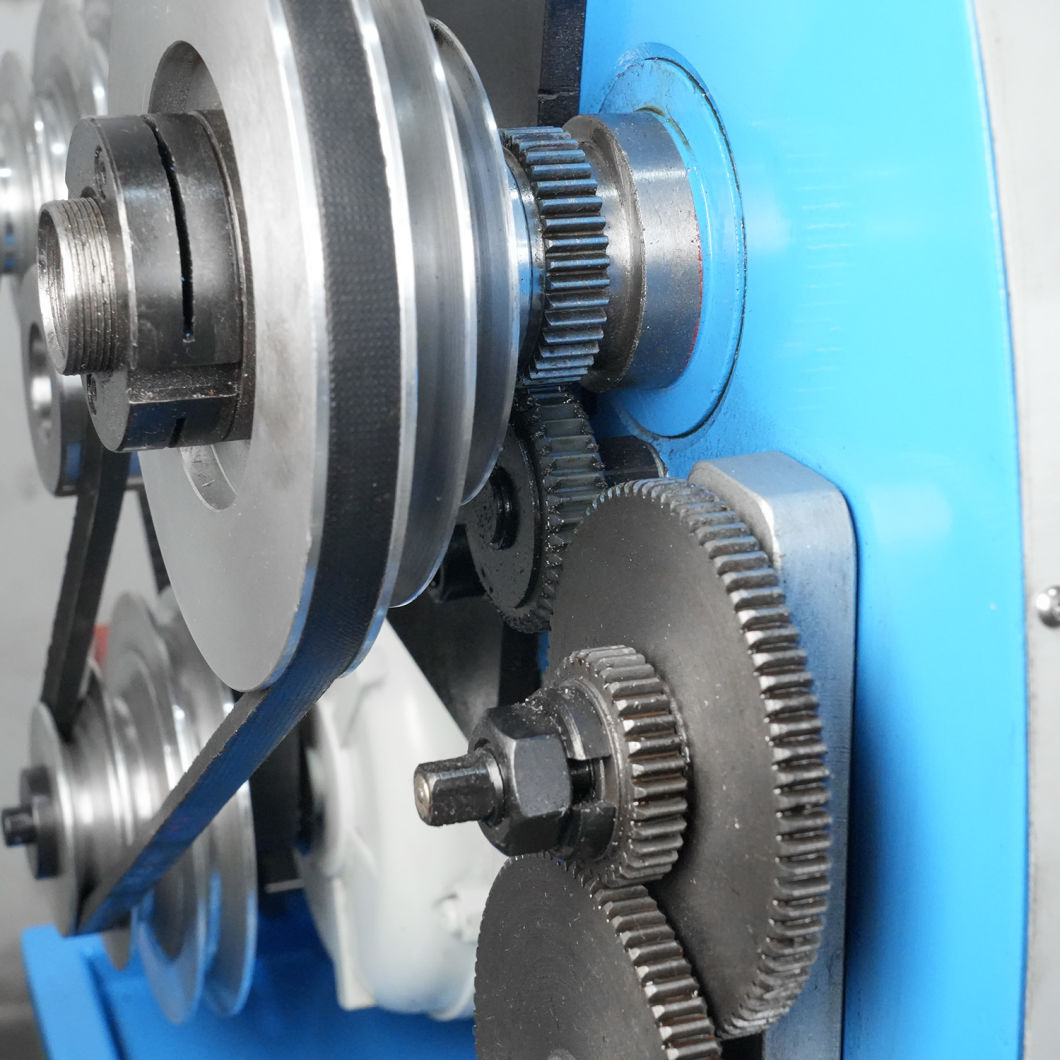

| Quadruple tool holder spanner | Steady center MT3/MT2 | HSS cutting tools | Change gears | Tools & Tool box |

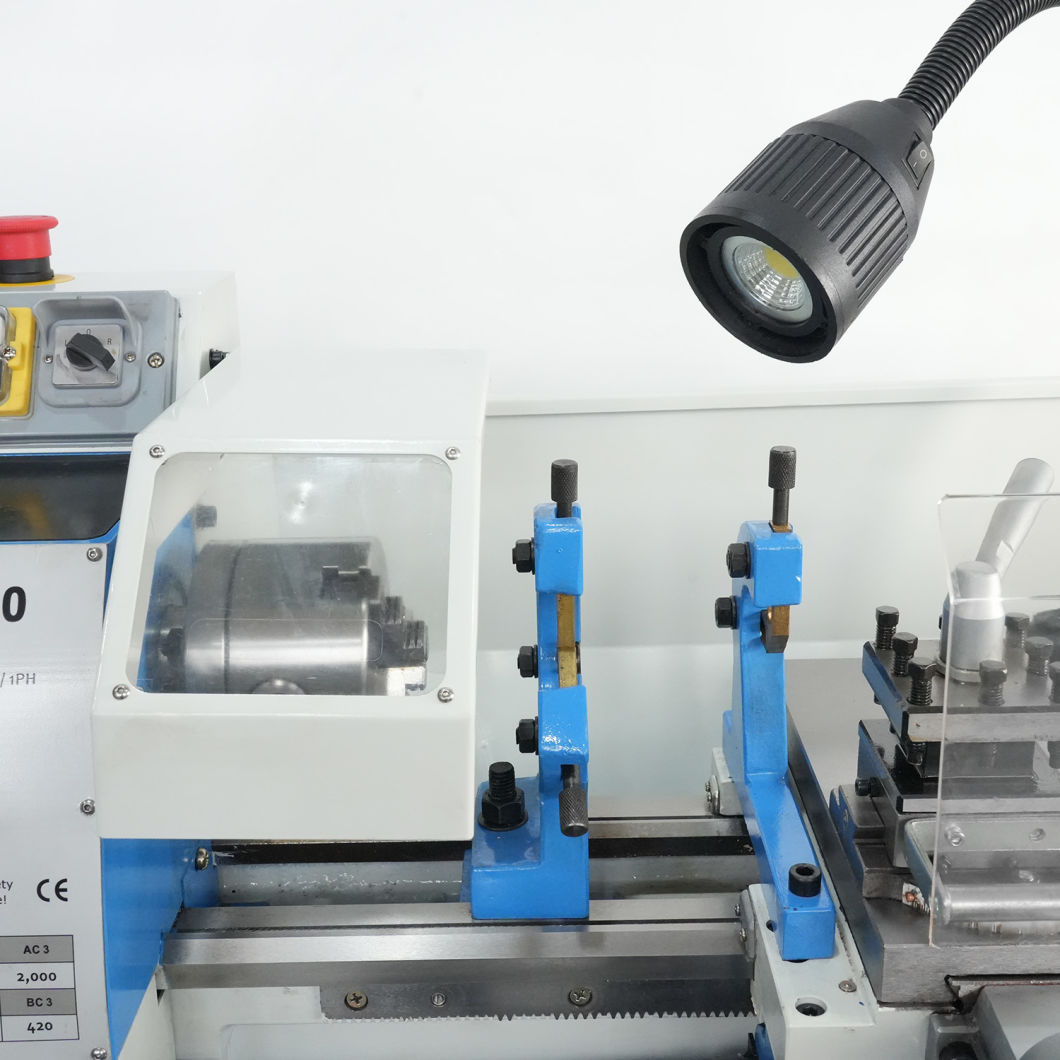

| Steady rest | Follow rest | Face plate | Stand | 4-jaw chuck Φ100/Φ125 |
| Live center MT3/MT2 | Halogen Lamp | Coolant pump | Quick change tool post | Thread chasing dial |
1:Widely useful, operation very easy, processing scope widespread
2:Guaranteed concentrlcity precision of the main spindle less than 0.009 mm
2:Guaranteed concentrlcity precision of the main spindle less than 0.009 mm
3:Concentlcity precision-lathe chuck smaller than 0.05 mm
4:Powerful, maintenance-free D.C.motor

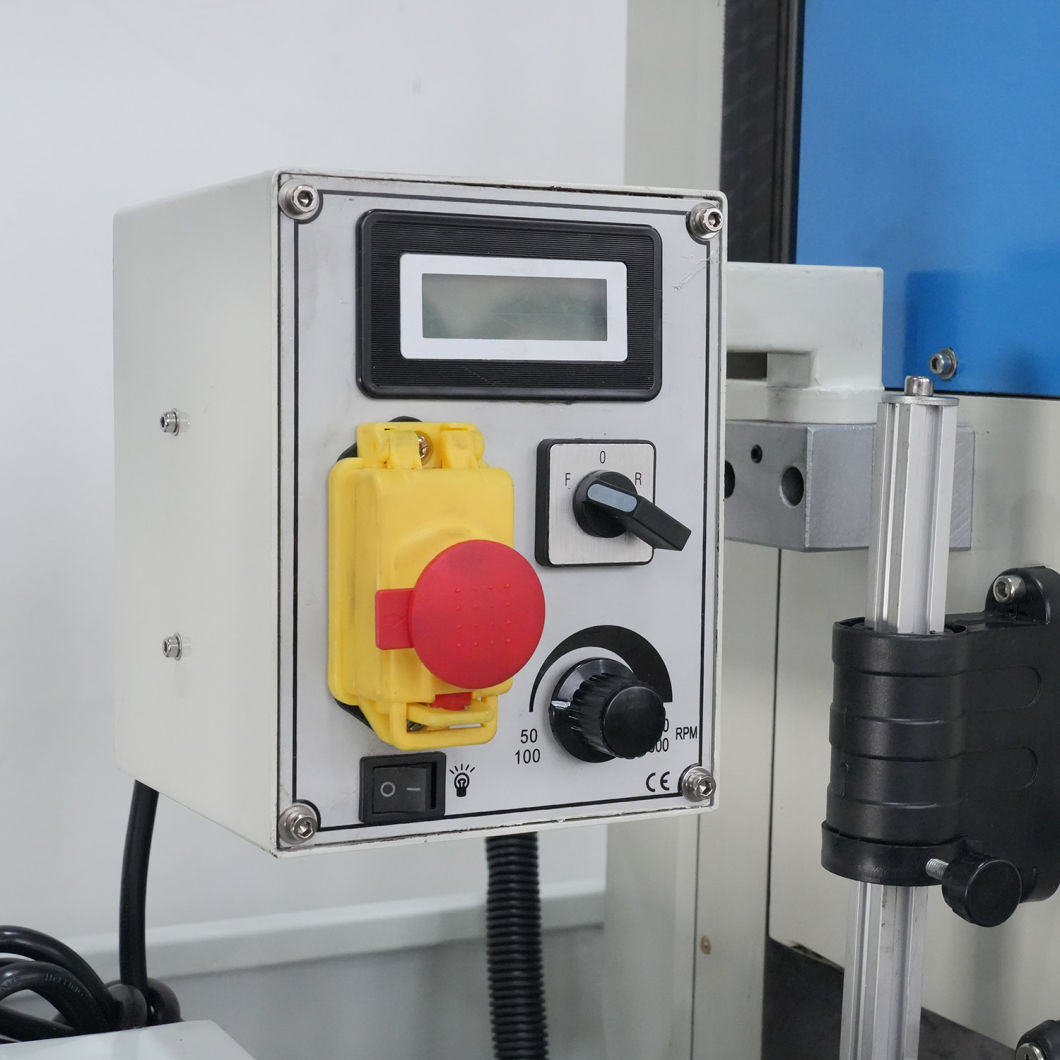

5:Stepless spindle speeds from 50 to 1,250 rpm and 100 to 2,500 rpm
6:Induction-hardened and ground prismatic bed made from cast iron
7:High precision and hardened spindle

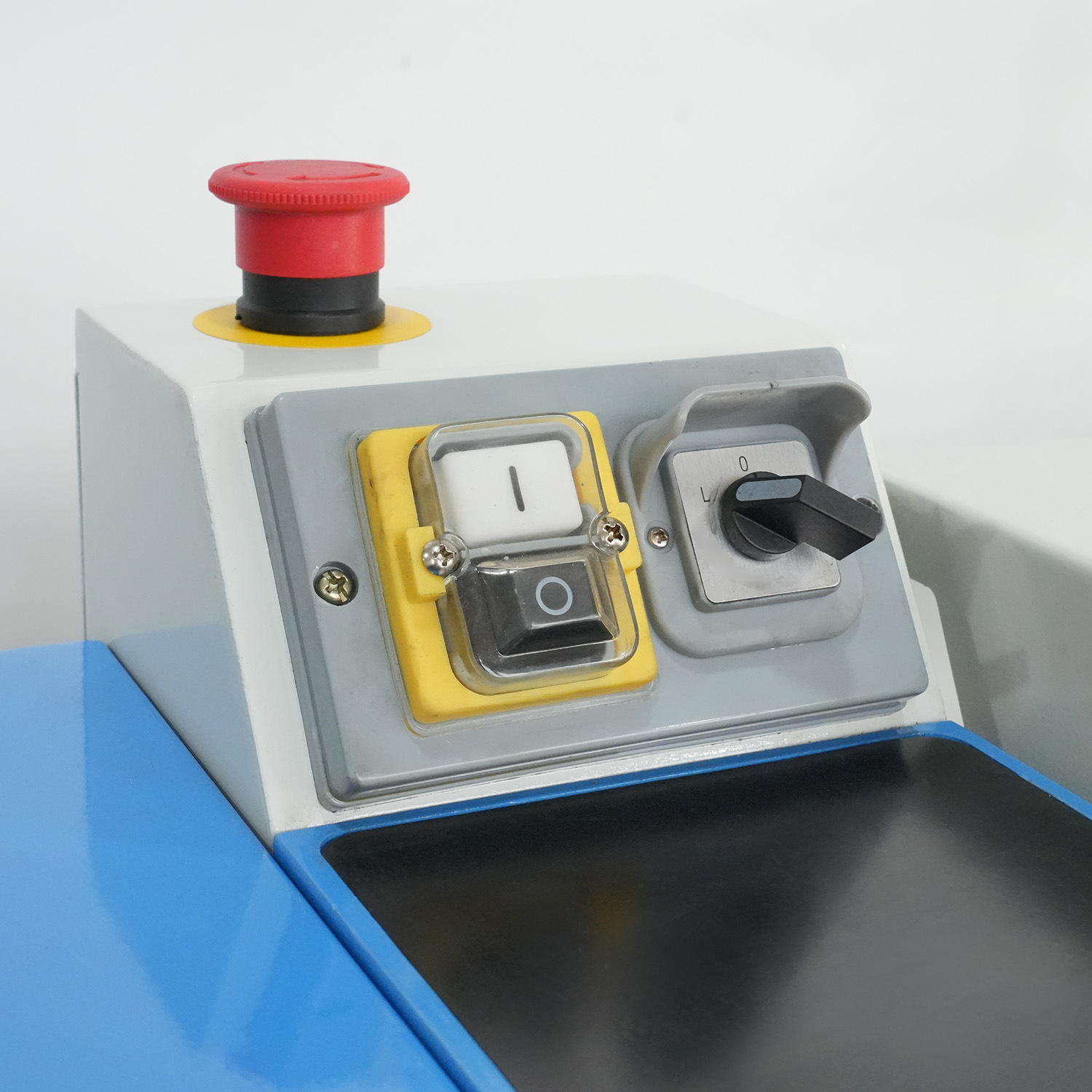

8:Safety magnetic and lock key European-standard switch
9:Cost-efficient, precise and of stable value

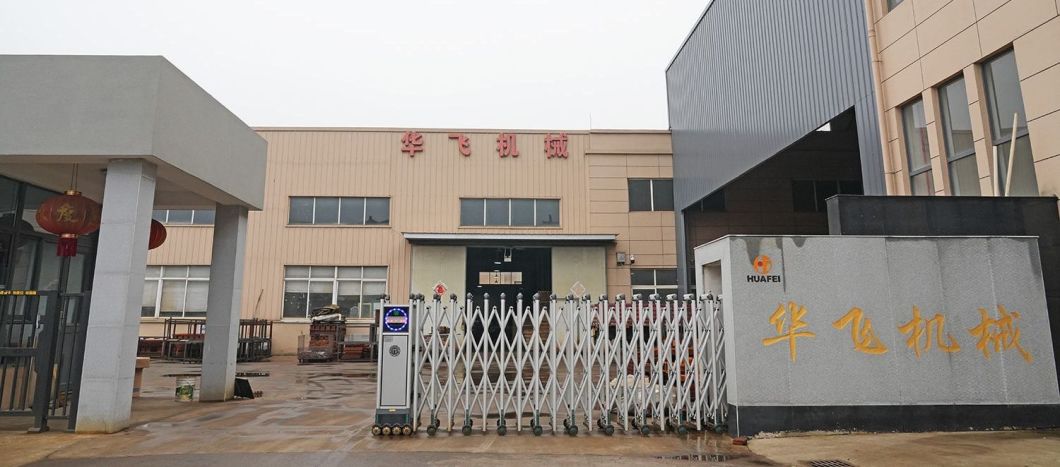

Company Profile:

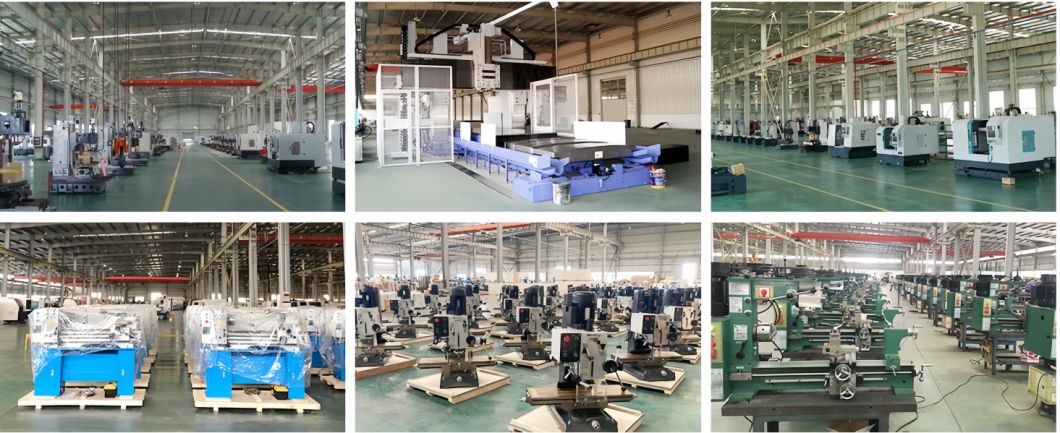

The Yangzhou Huafei General Machine Factory is located in the historical city Yangzhou suburb, already have 20 years history. We specialized produce each kind of series lathe, driling & milling machine, metal circular saw,multi-function lathe.The product exports to USA,Japan,Germany, France, Holland, Russia and U.K.etc,more than 50 countries and the area.
Our factory registered capital 10,000,000 Yuan, fixed asset 20,000,000 Yuan, each kind of specialized production equipment more than 200 sets, staff more than 300 peoples. We have the ability of independent design, making the machinery, the professional contingent and equipment. Besides provides the standard product, we may carry on the design and the production according to the customer request. We have the confidence, have able to produce the quality first-class product and provide the first-class service. We want in front of the customer, their needs is our diligently direction.
Management ldea:
Take the good faith as this, depend on the scientific management, produce the first- class product, struggle the international market.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?

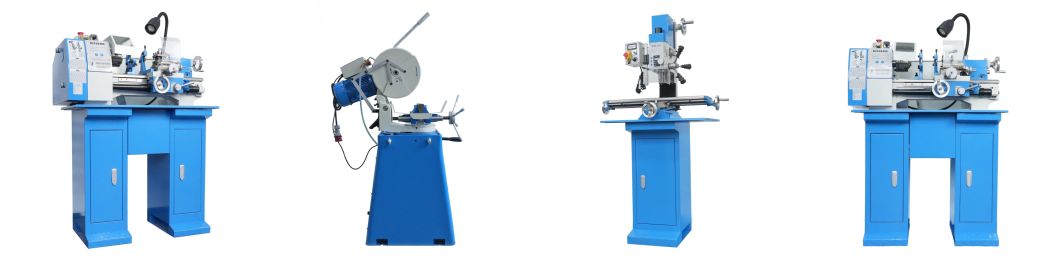

A: We specialized in all kinds of machines ,such as LATHE ,CIRCULAR METAL SAW ,DRILLING & MILLING MACHINE,MULTI-FUNCTION LATHE and so on .
3: What about the quality of the machine? and after-sales service?
A : Our machine warranty period is 3 years,and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set . (Only some low cost machines will be more than 1 set )
