Online After-Sales Service
1 Year
Horizontal Lathe
Chuck Lathe
Horizontal Guide Rail
Horizontal Guide Rail

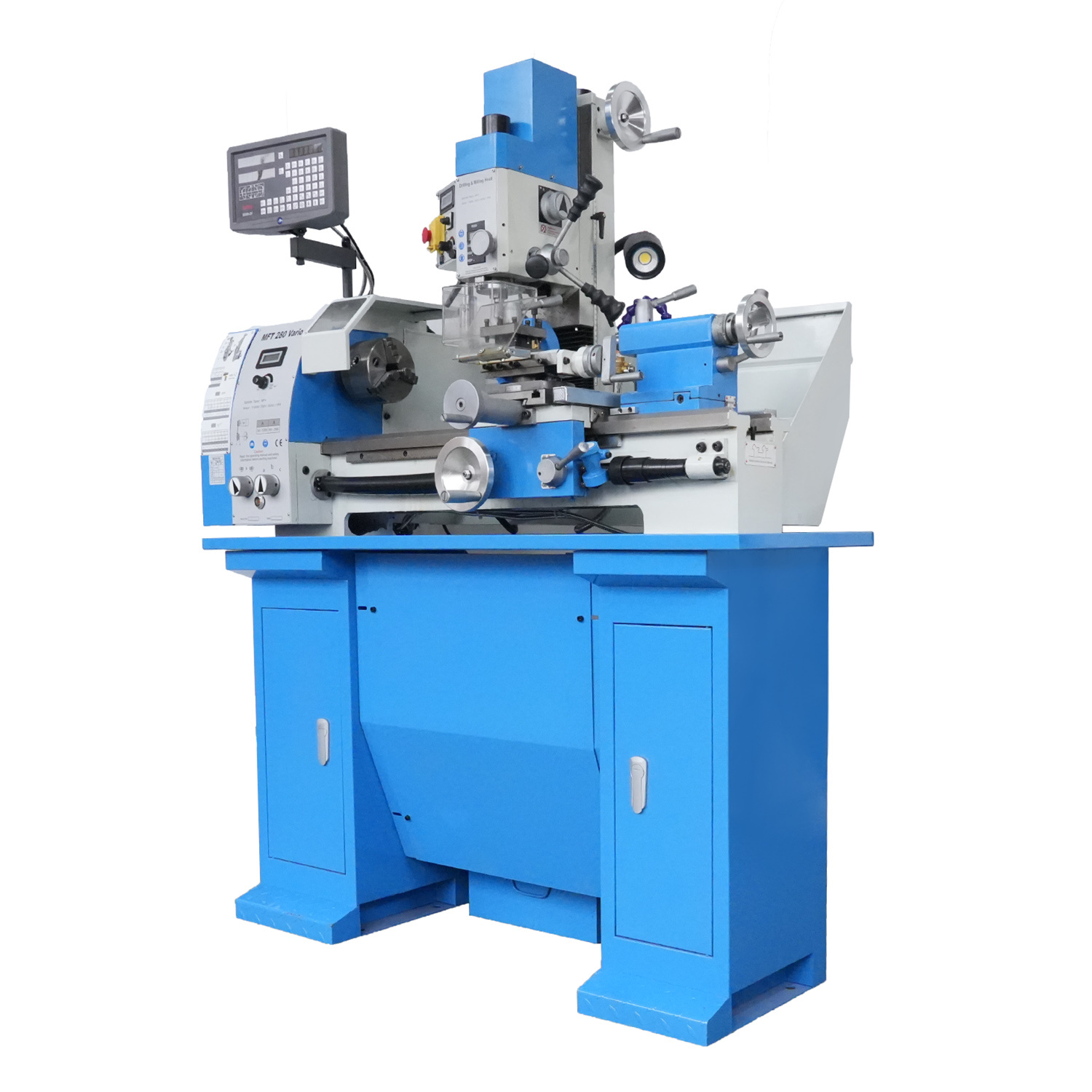

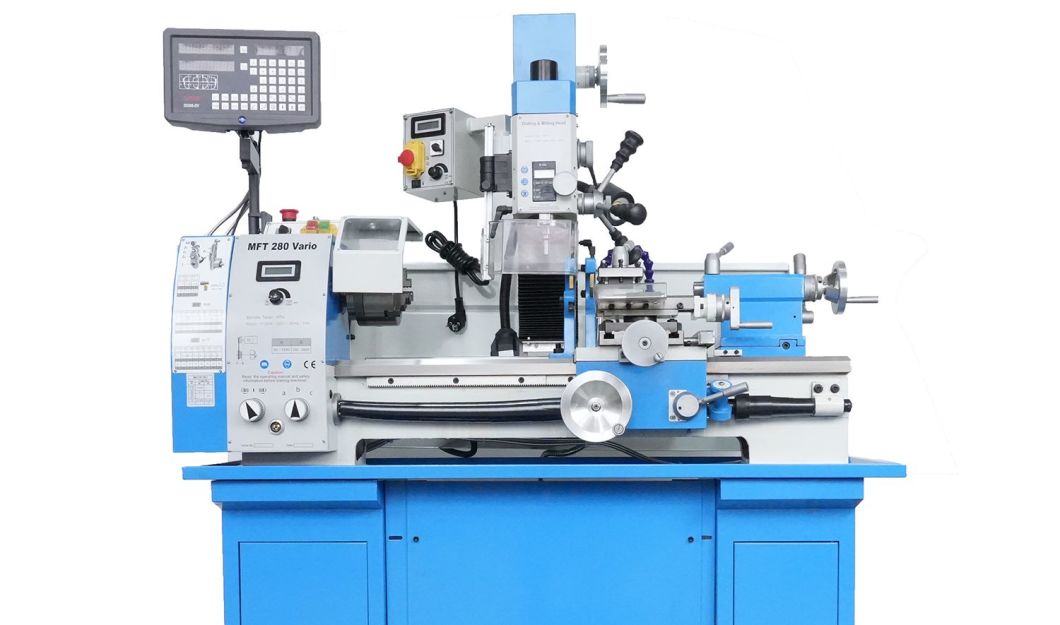

Model | MFT280VARIO | ||
Max.sawing over bed | 280mm | Distance between centers | 700mm |
Swing over cross slide | 170mm | Width of bed | 180mm |
Taper of spindle bore | MT4 | Spindle bore | 26mm |
Range of spindle speeds | 50-2500rpm | Range of longitudinal feed | 0.07-0.40mm/r |
Range of inch threads | 8-56TPI | Range of metric threads | 0.2-3.5mm |
Taper of tailstock quill | MT2 | Motor power | 1100W |

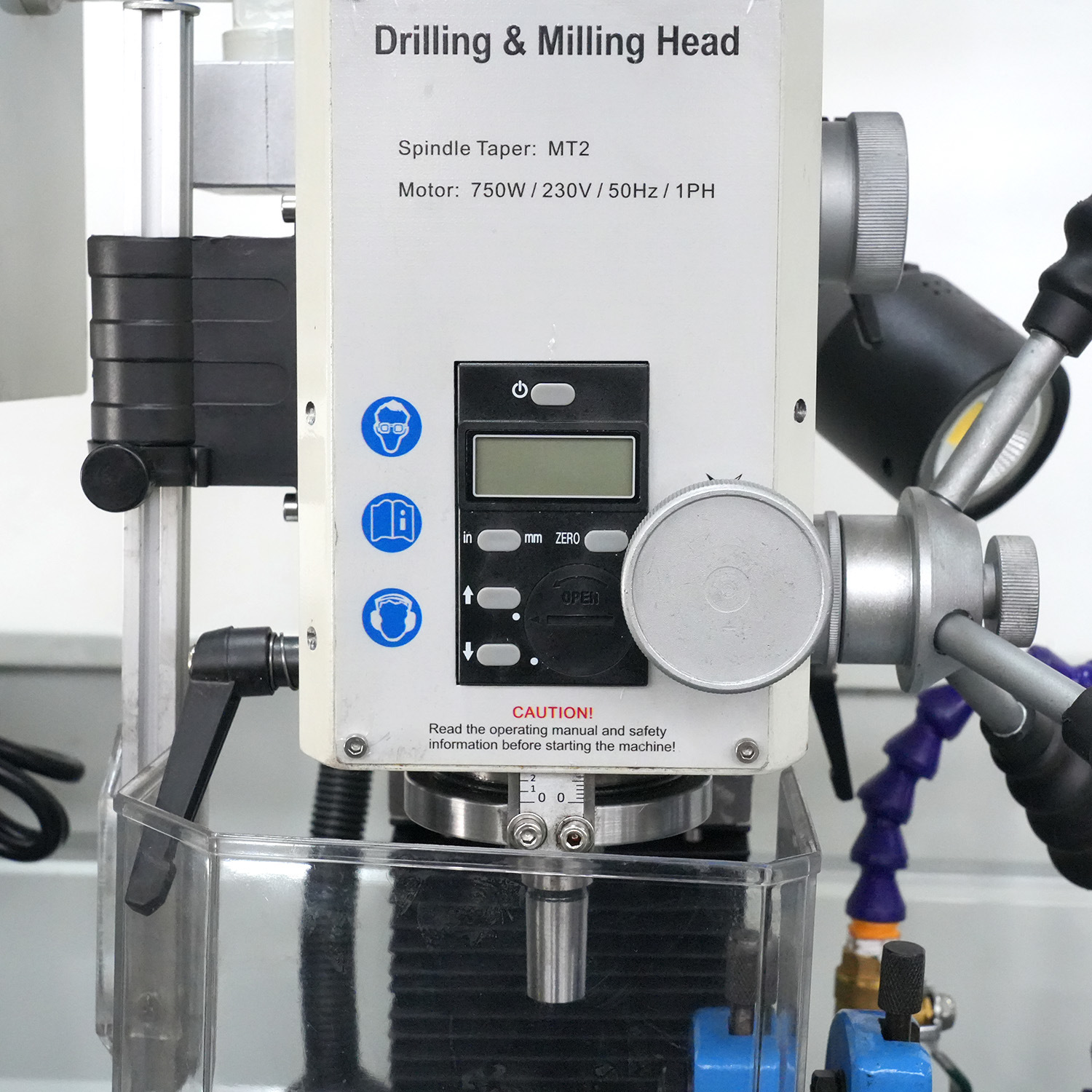

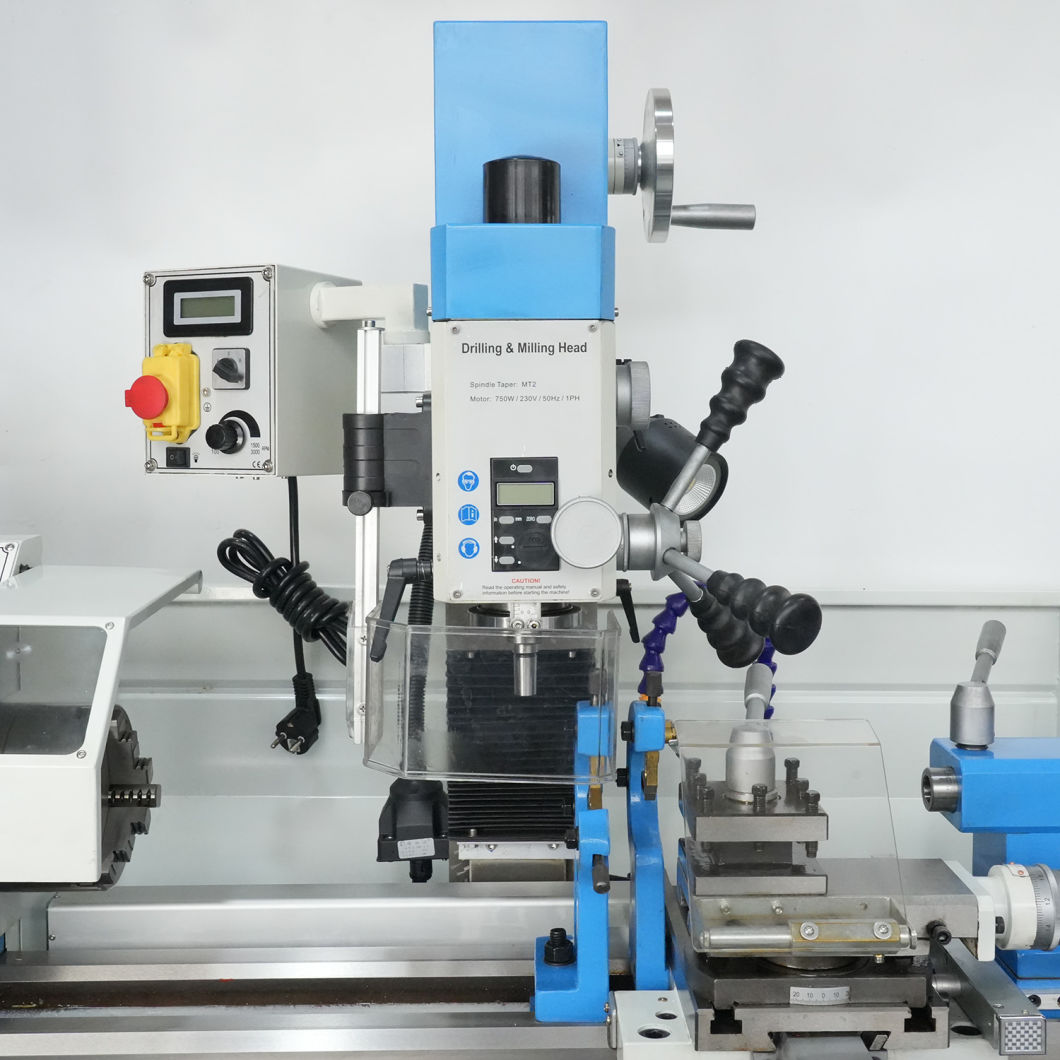

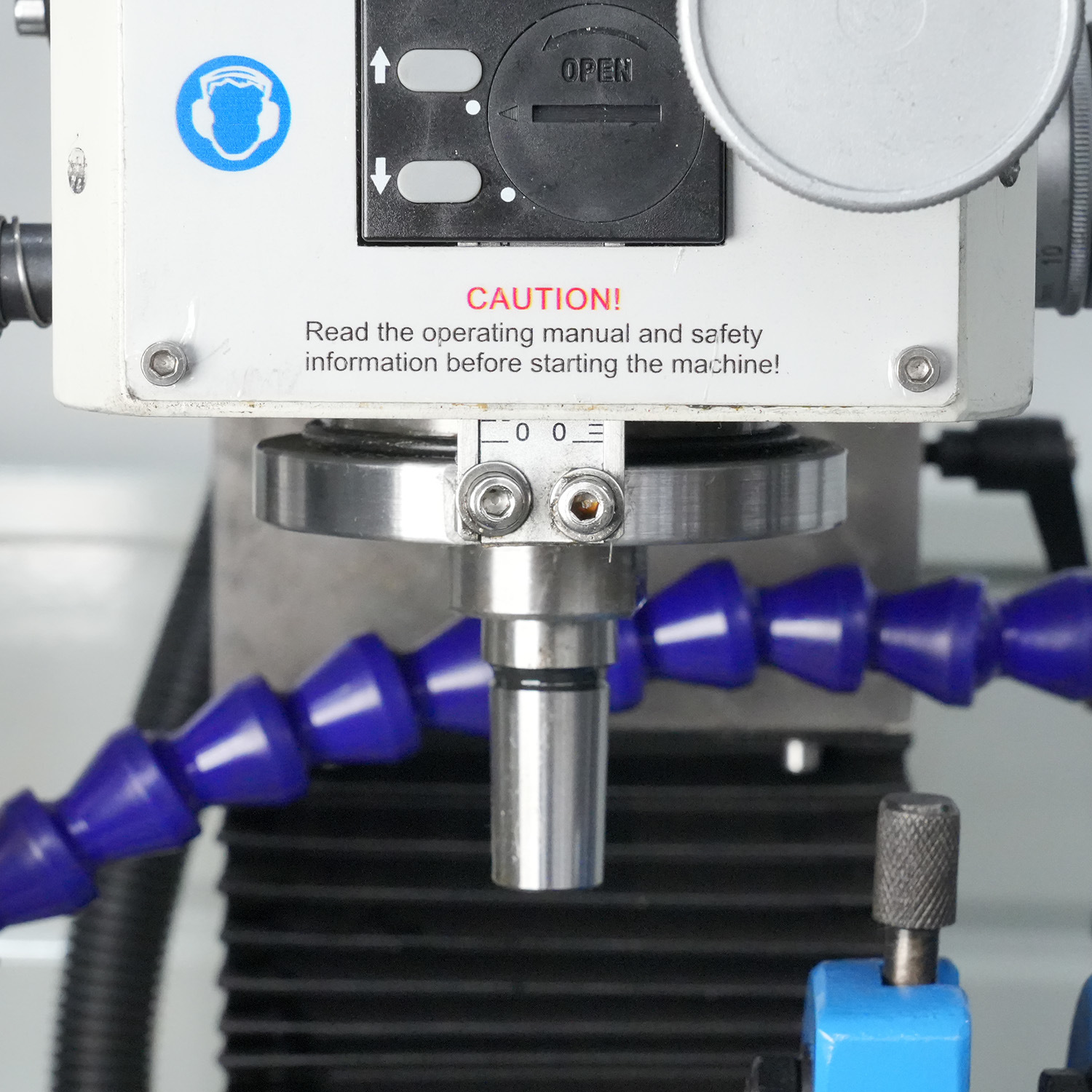

Drilling & Milling Head | Max.drilling capacity | Max.Φ20mm | |
Milling cap.of cutter head | Max.63mm | Milling cap.of endmillcutter | Max.20mm |
Taper of spindle bore | MT2 | Sleeve travel | 52mm |
T-slot size | 12mm | Range of spindle speeds | 50-3000rpm |
Max.distance spindle to table | 380mm | Working range | 190mm |
Motor power | 850W | Net weight | 248kg |
Standard Accessories

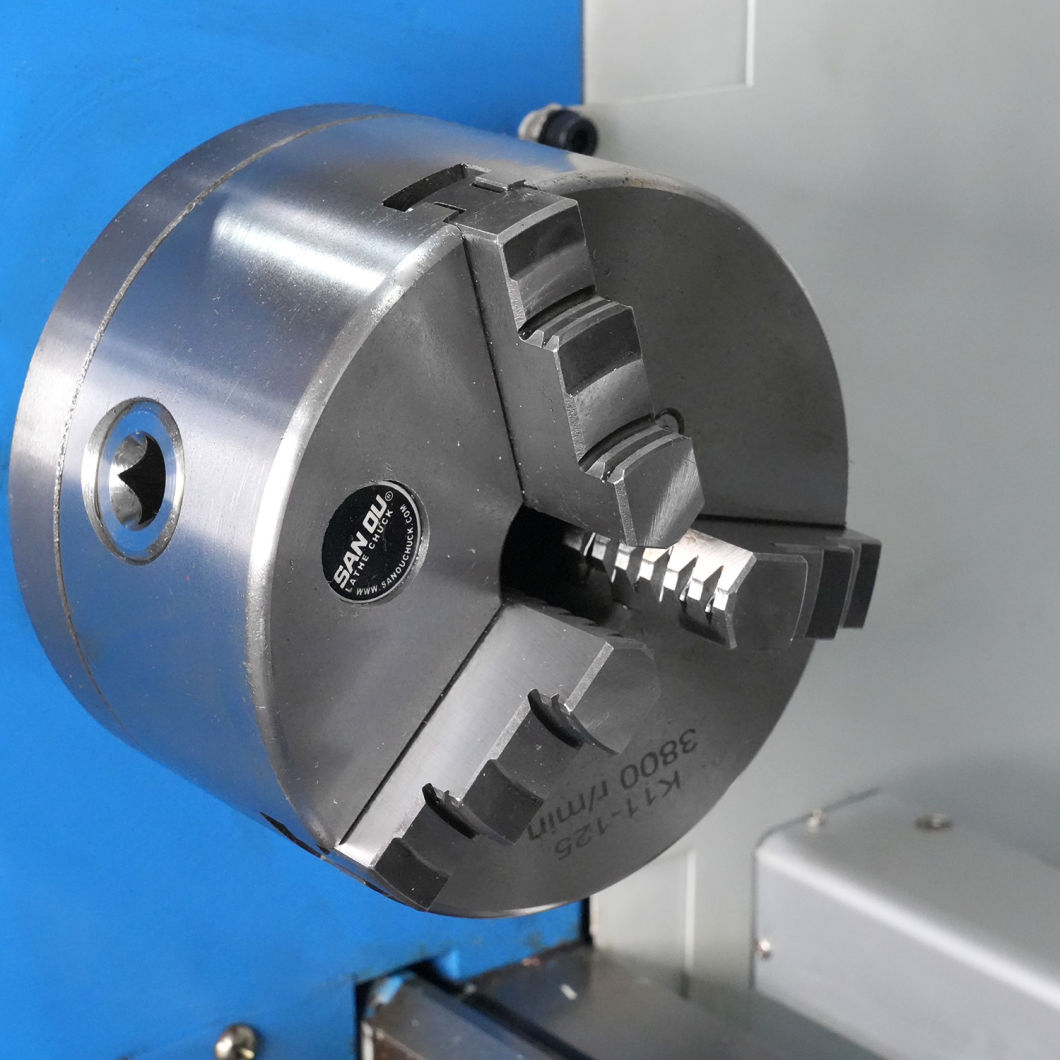

Speed display | 3-jaw chunk Φ125 | Splash guard | Chip tray | Cover for chunk protection | Tool holder protection |
Center MT4/MT2 | Change gears | Drawbar M10 | Morse taper MT2/B16 | Drill chunk B16 | Toolbox & tools |
Optional Accessories

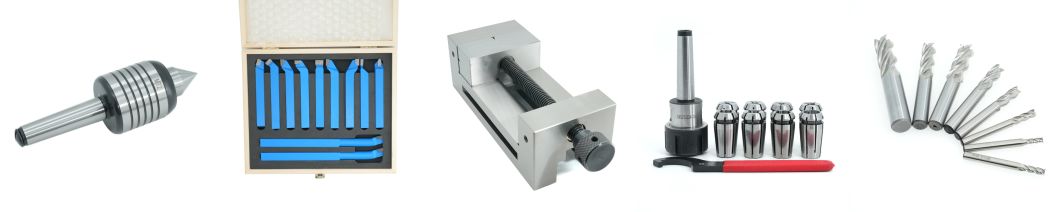

Four-jaw chunk Φ125/Φ160 | Follow rest | Steady rest | Face plate | Live center MT4/MT2 | Quick change tool post | Halogen working lamp |
Keyless chunk 1-13mm/B16 | Milling chunk | Precision vice | Coolant pump | Mill cutter | Collect chunk | Stand |
Feature

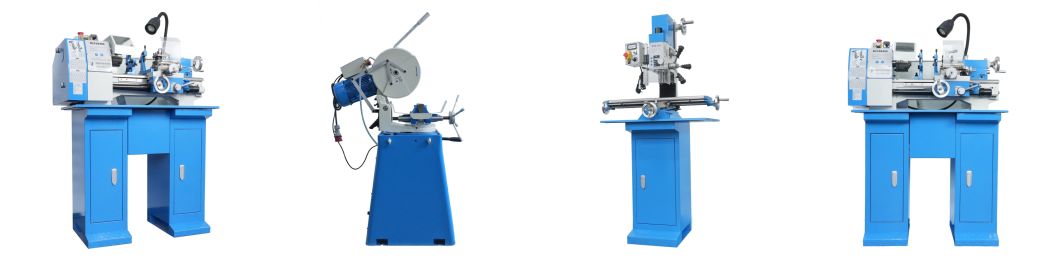

More products

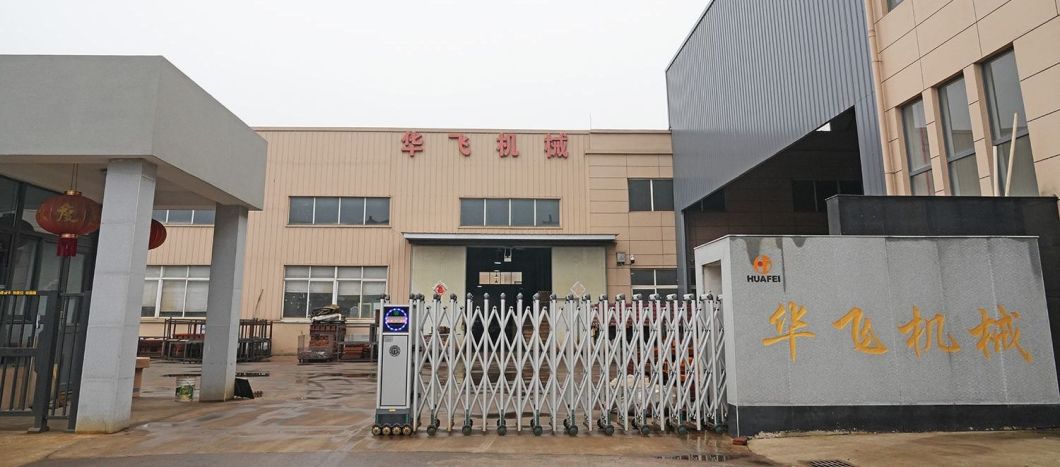

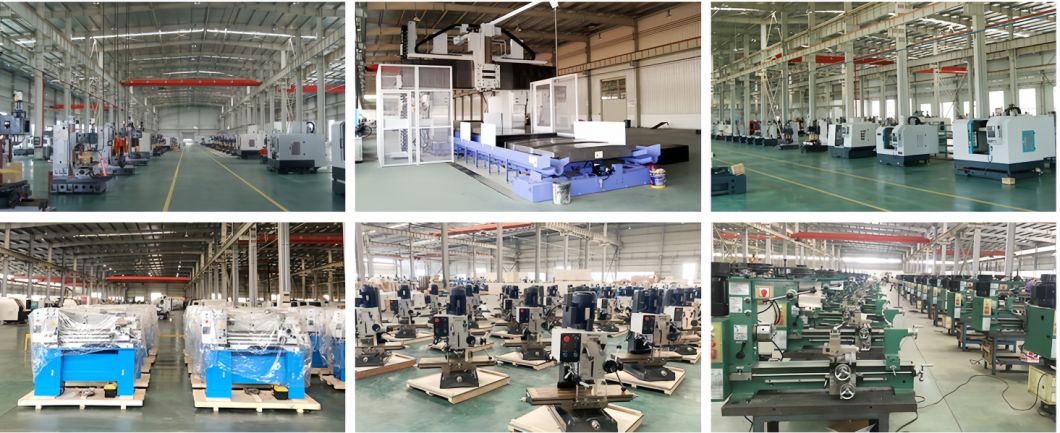

Company Profile
Certifications
Packaging & Shipping
FAQ
