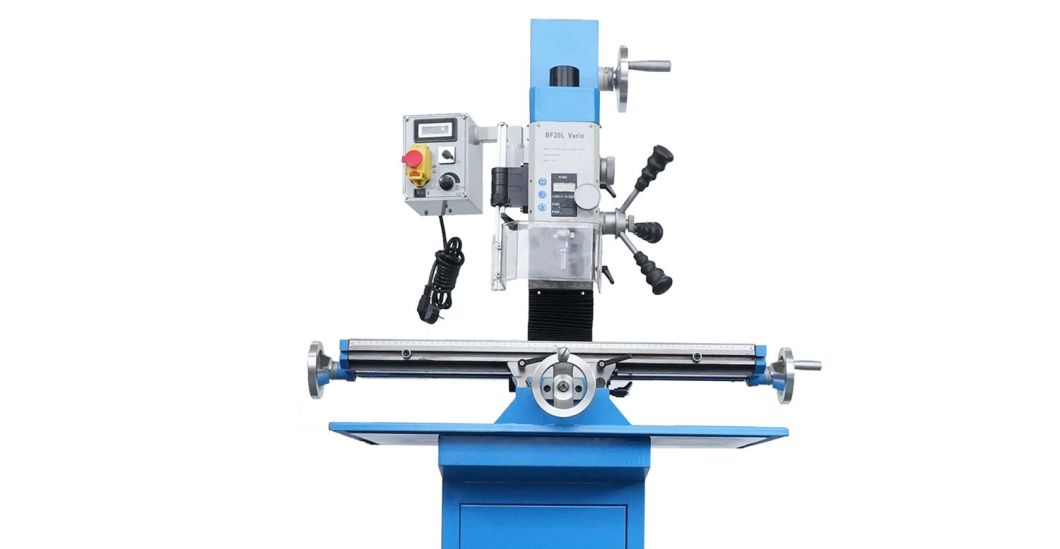

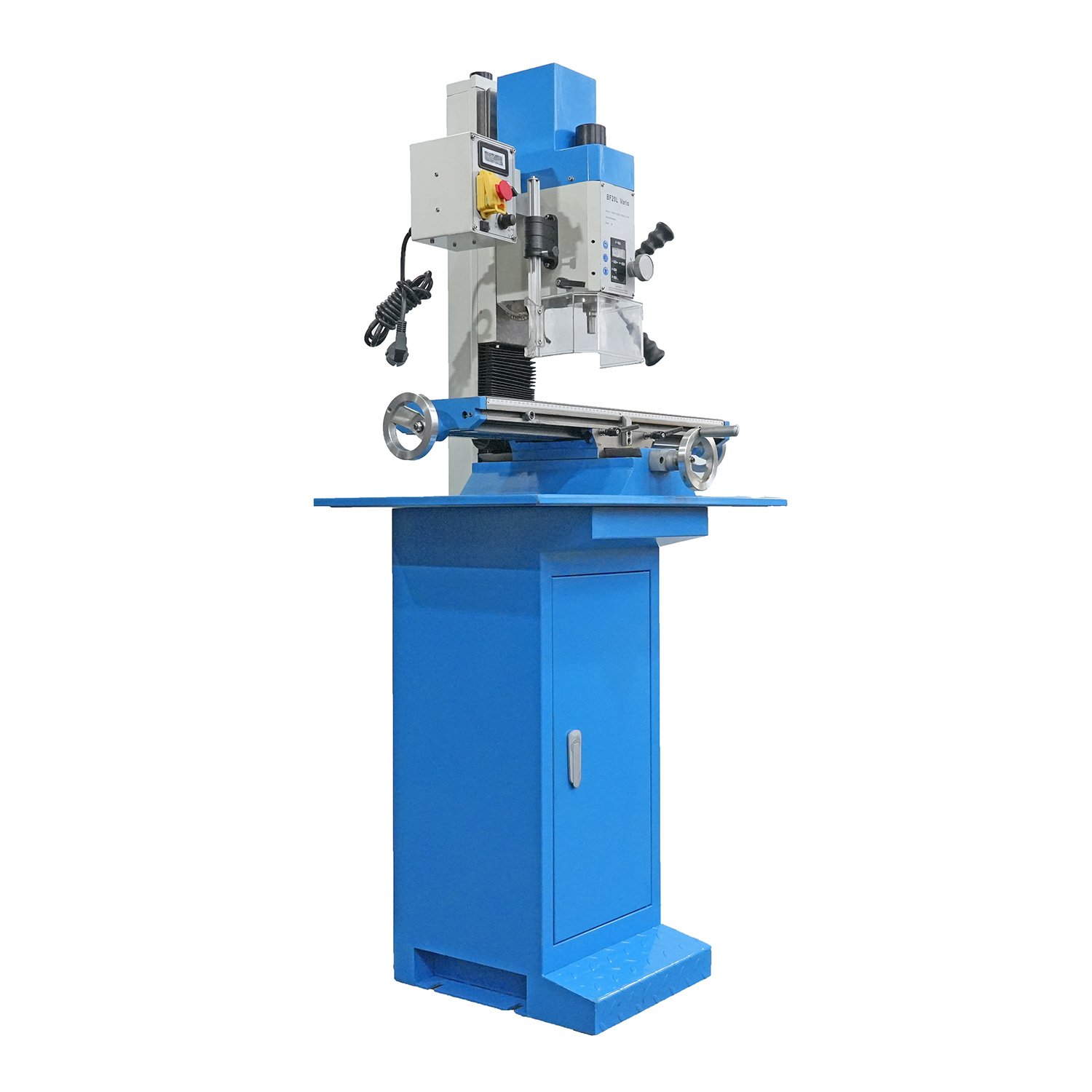

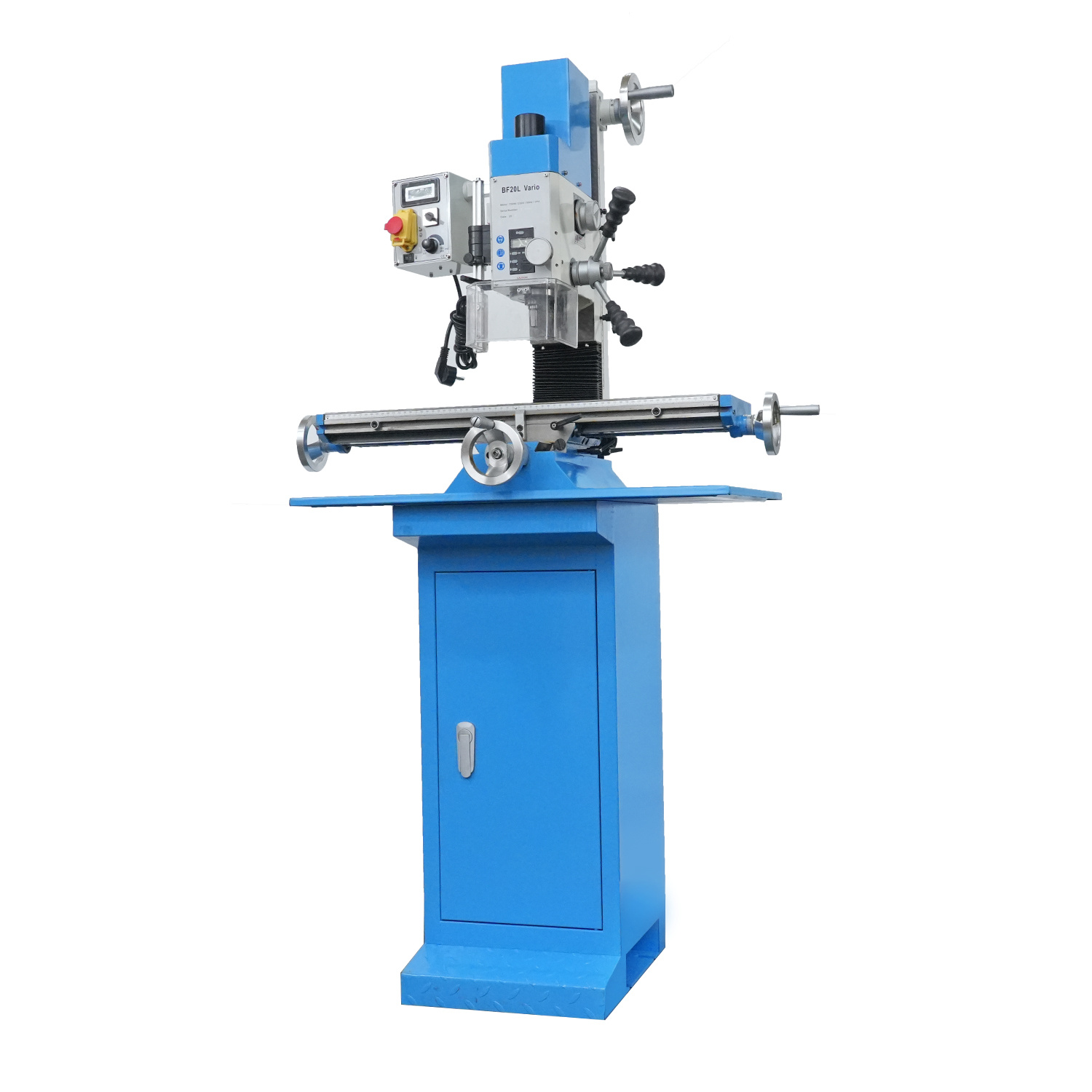

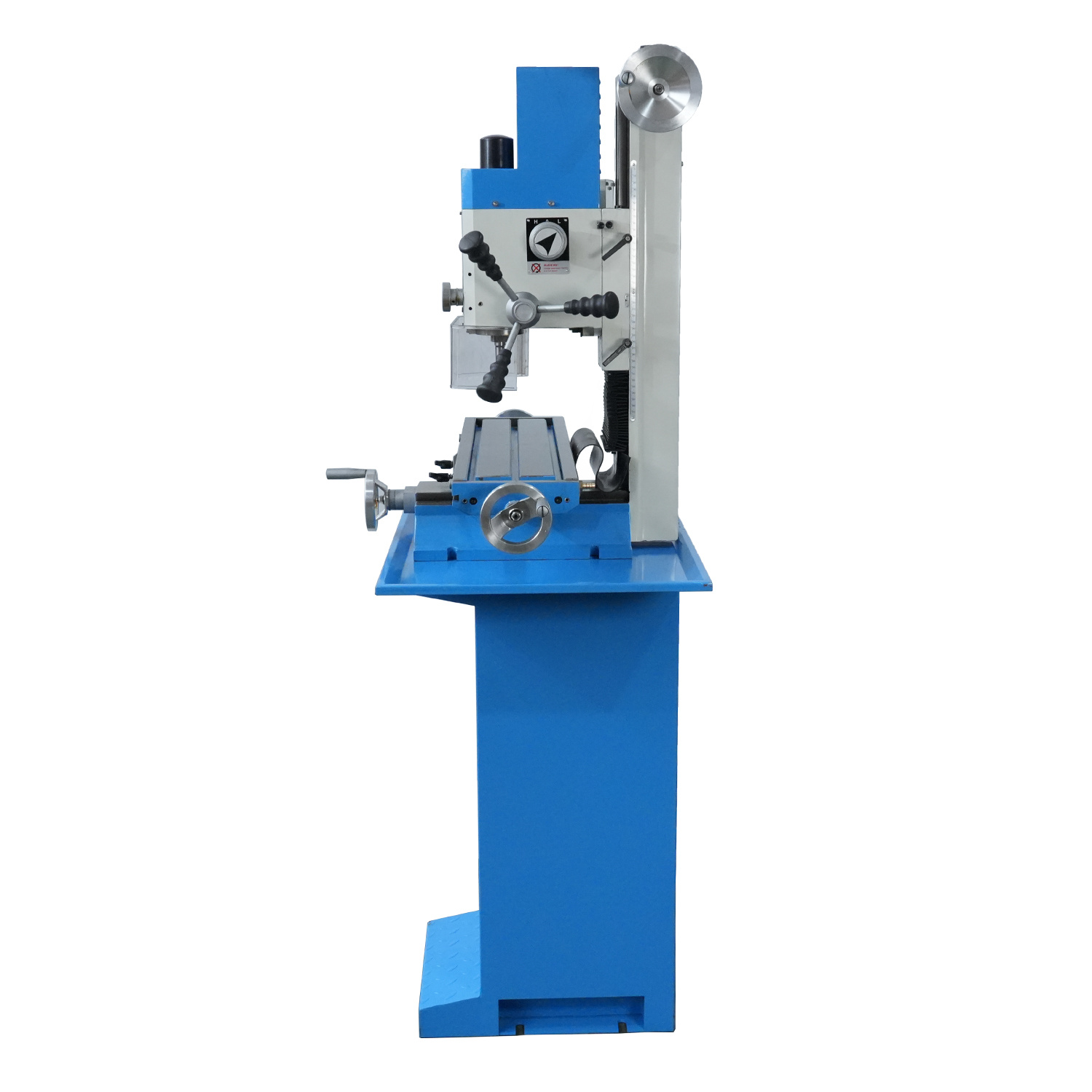

High Efficiency Automatic Feeding Drilling and Milling Machine with Variable Speed
| Quantity: | |
|---|---|
-
Radial Drilling Machine
-
Vertical
-
Artificial
-
Manual
-
Precision
-
ISO 9001
| Model | BF25 VARIO | BF25L VARIO |
| Max.drilling capacity | Max.Φ25mm | Max.Φ25mm |
| Max.face milling capacity | Max.Φ65mm | Max.Φ65mm |
| Max.end milling capacity | Max.Φ25mm | Max.Φ25mm |
| Working range | 190mm | 190mm |
| Working table size | 500×180mm | 700×180mm |
| T-slot size | 12mm | 12mm |
| X-axis travel | 290mm | 490mm |
| Y-axis travel | 180mm | 180mm |
| Z-axis travel | 280mm | 280mm |
| Taper of spindle bore | MT3/M12(R8) | MT3/M12(R8) |
| Sleeve travel | 50mm | 50mm |
| Range of spindle speeds | 50-2250rpm | 50-2250rpm |
| Headstock tilt left&right | ±90° | ±90° |
| Motor power | 900W | 900W |
| NW/GW | 110/140Kg | 130/160Kg |
| Package size(LxWxH) | 610×560×910mm | 770×720×910mm |

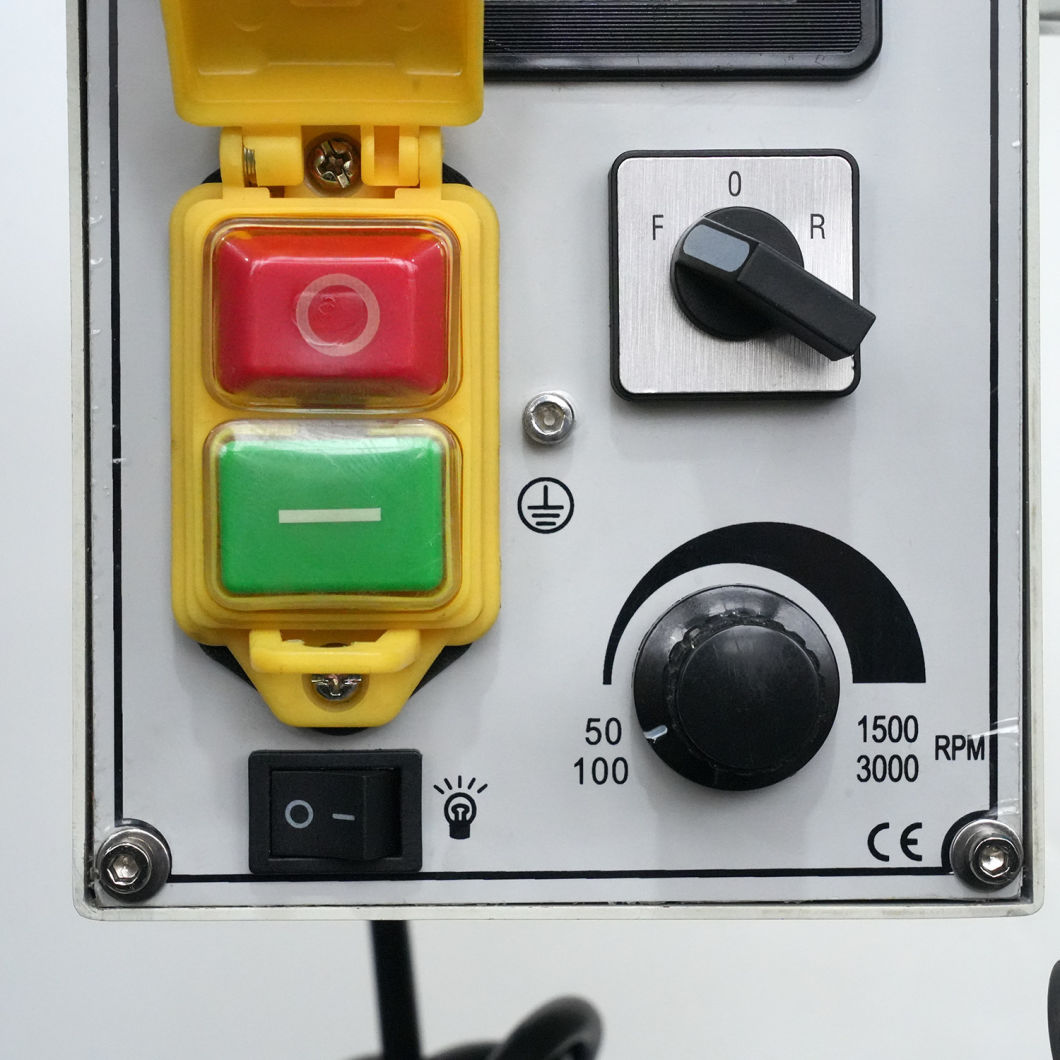

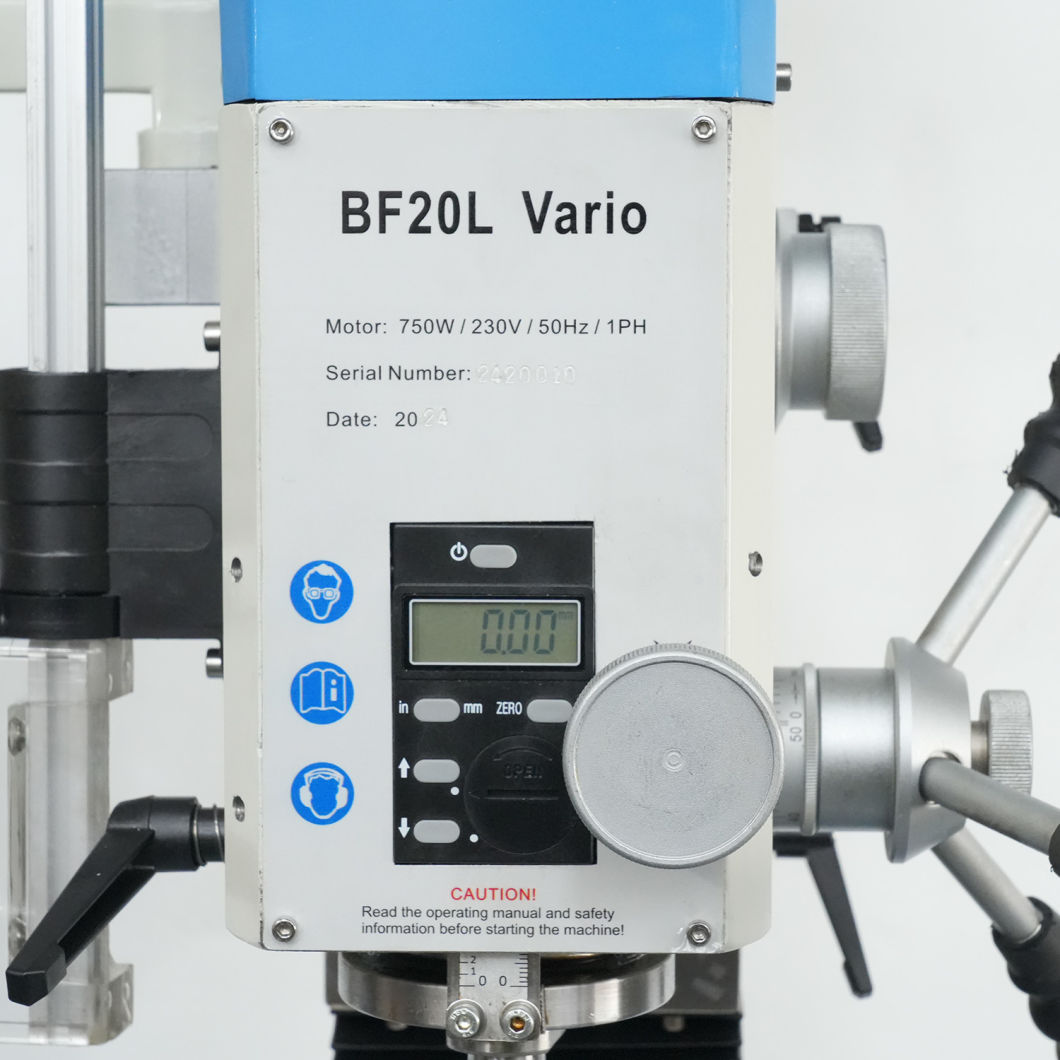

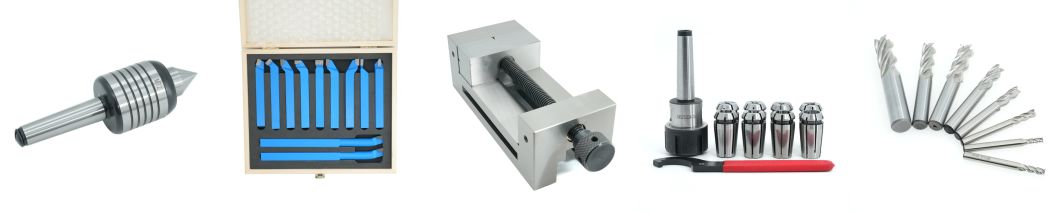

| Speed display | Morse taper MT2/B16 | Draw in rod M10 | Drill chuck 0-13mm | Toolbox & tools |
| Halogen lamp | Coolant pump | Milling vice | Keyless chunk 1-13mm/B16 |
| Collect chunk | End mill cutter | Stand | Chip tray |

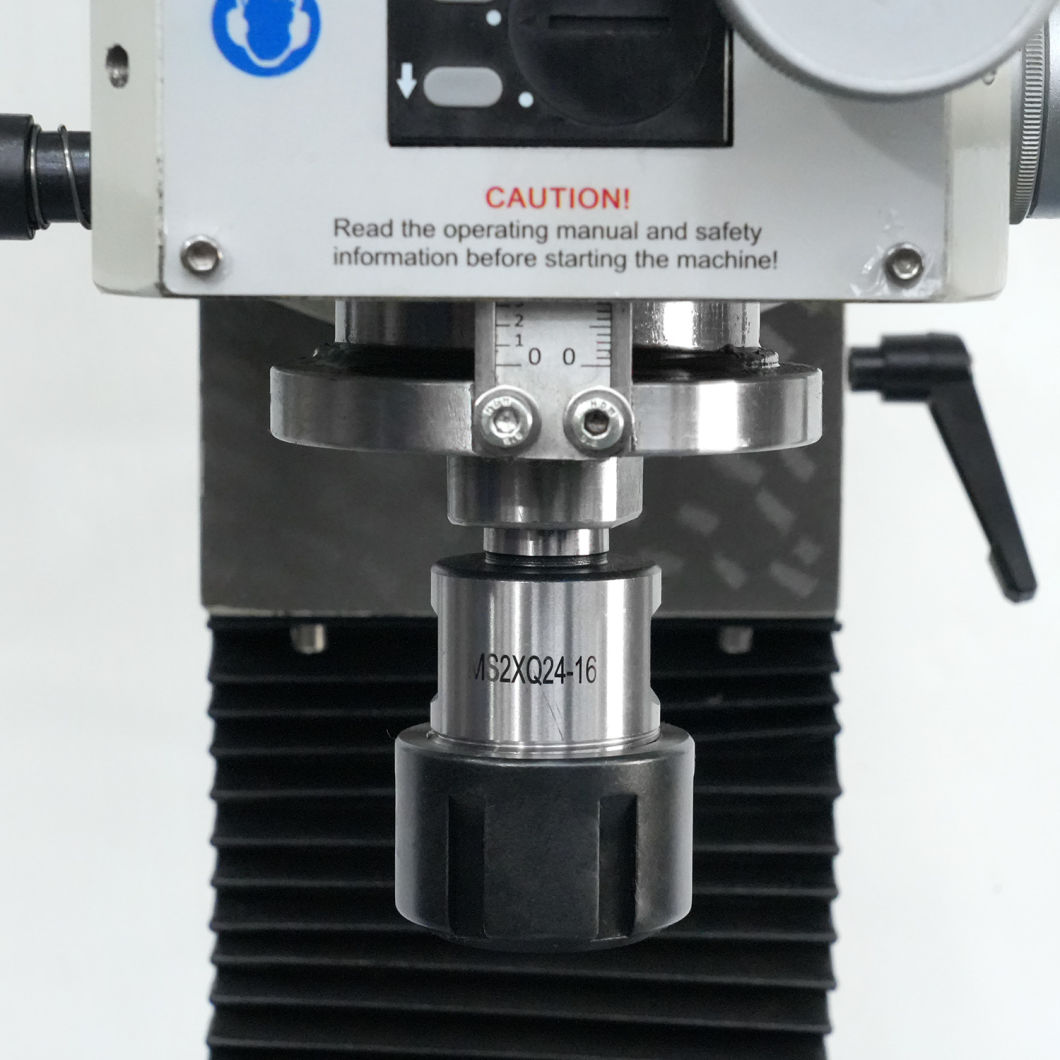

- Precision Bored and Honed Milling Head - Our drilling and milling machine features a precision bored and honed milling head, ensuring high accuracy and excellent surface finish.

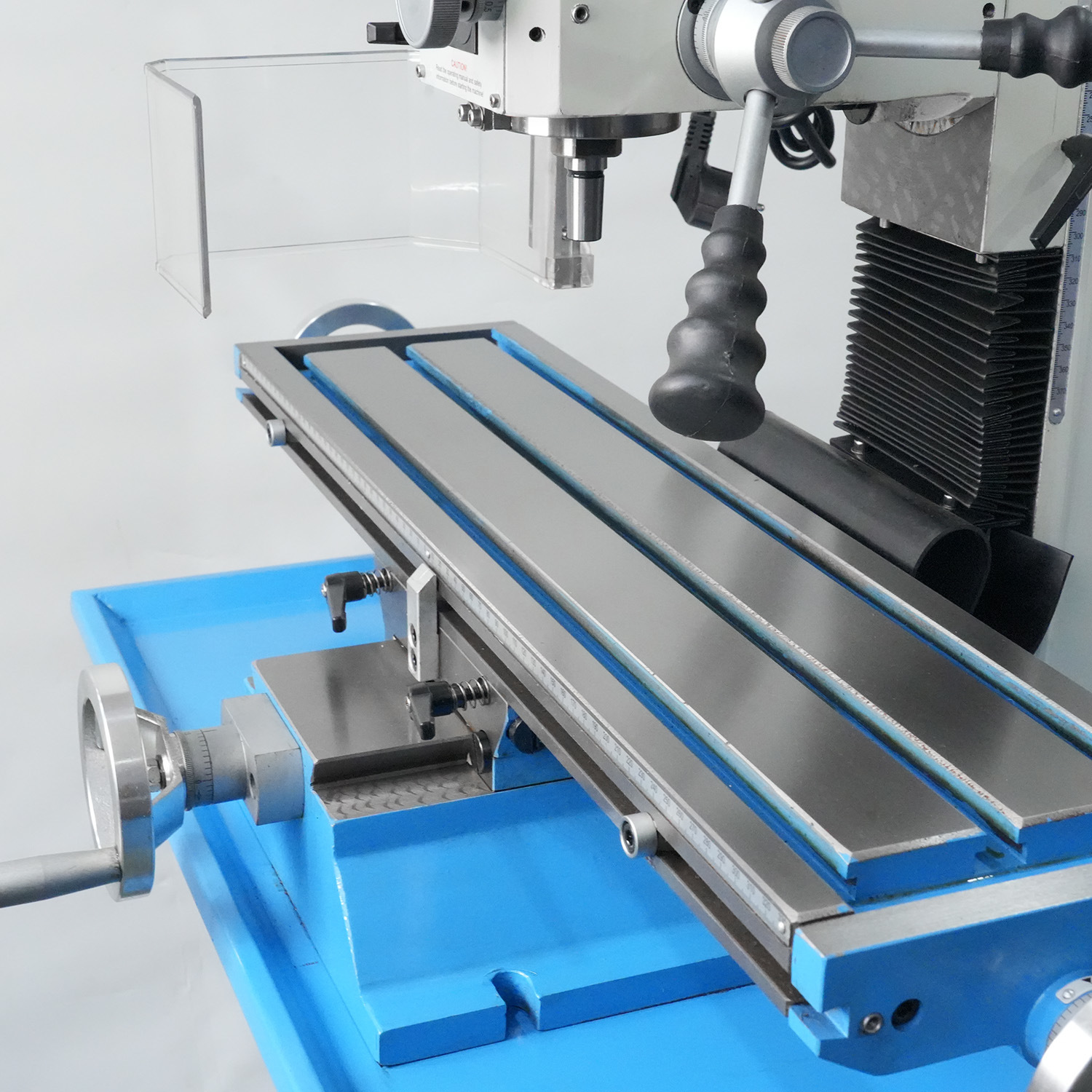

- Precision Ground Worktable - The worktable is precision ground for flatness, providing a stable and even surface for workpiece processing.
- Tilting and Swiveling Head - The tilting and swiveling head allows for versatile drilling and milling operations, making it easy to achieve the desired angle and position.

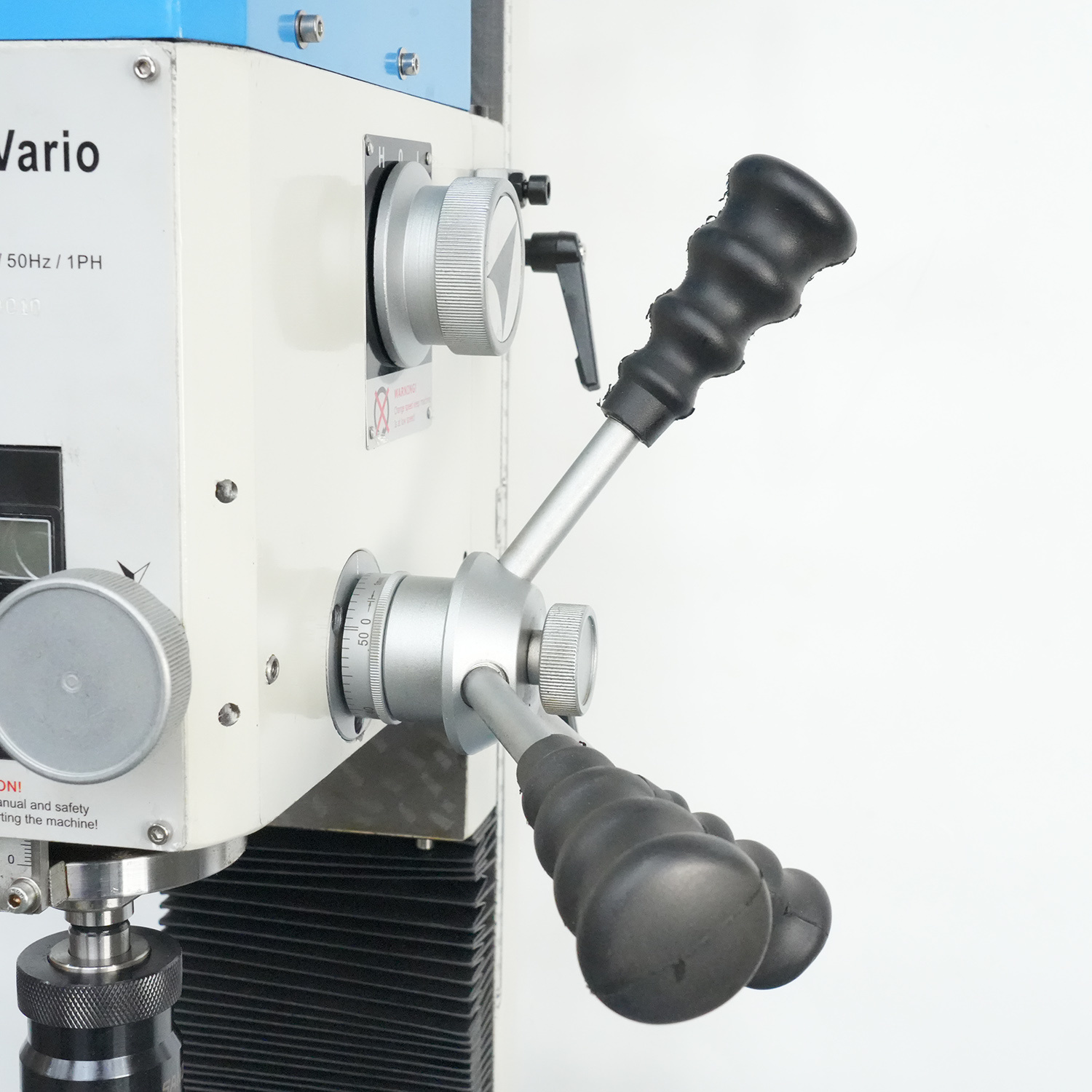

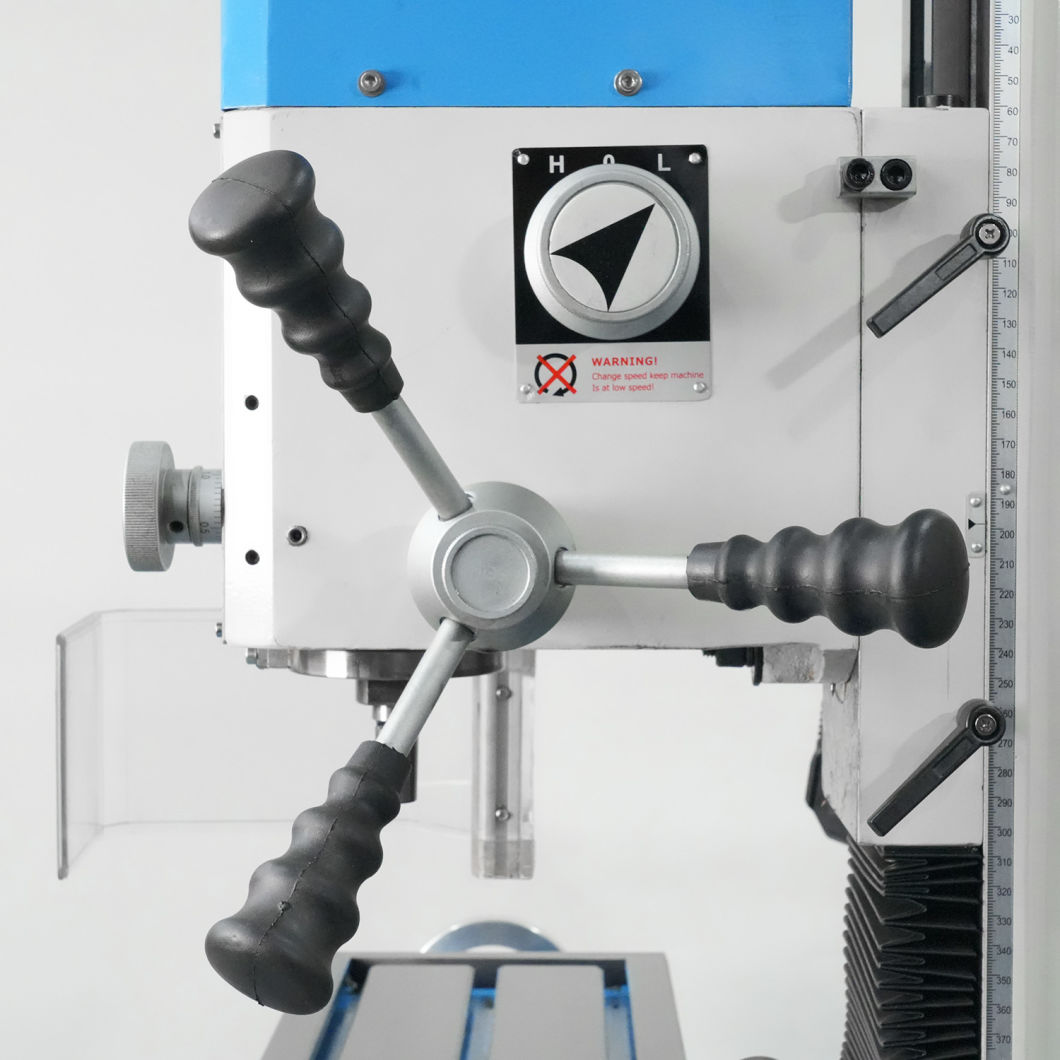

- With Micro-Feed Handwheel and Lever Down Feed - The machine comes equipped with a micro-feed handwheel and lever down feed, providing precise control over the drilling and milling process.

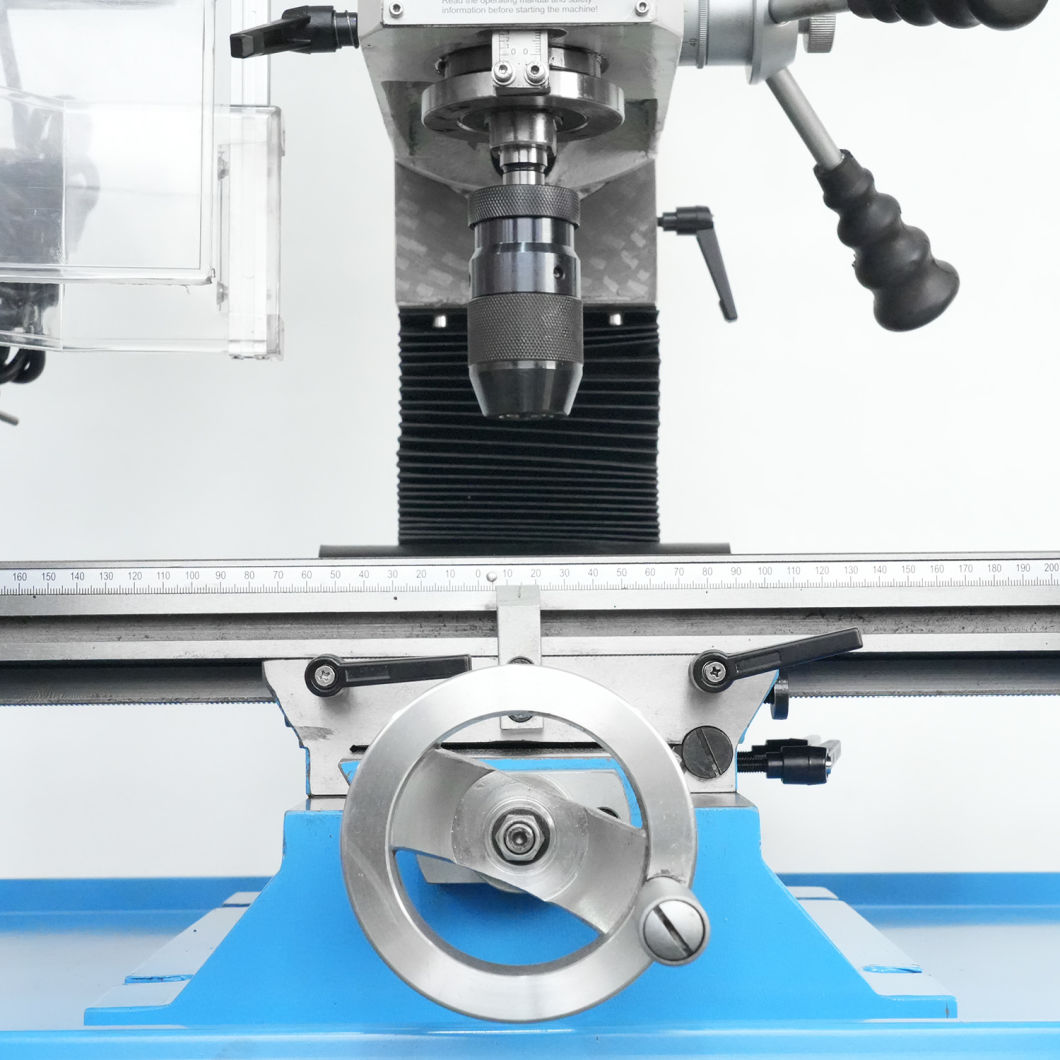

- Adjustable Gibs on Table - The adjustable gibs on the table ensure smooth and stable movement during operation.
- Adjustable Stops on Table - The adjustable stops on the table allow for accurate positioning and repeatability, improving work efficiency.
- Accurate Position, Strong Rigidity, Strong Cutting Power - Our drilling and milling machine delivers high precision, strong rigidity, and powerful cutting performance, making it suitable for a wide range of industrial applications.
- Gear Drive, Lower Noise - The machine features a gear drive system that ensures low noise operation and longer service life.
- Optional Two-Speed Motor - An optional two-speed motor is available, allowing for greater flexibility in processing different materials.
- We are committed to providing reliable and efficient workshop machinery solutions for our customers. Contact us today to learn more about our drilling and milling machine and how it can benefit your business.

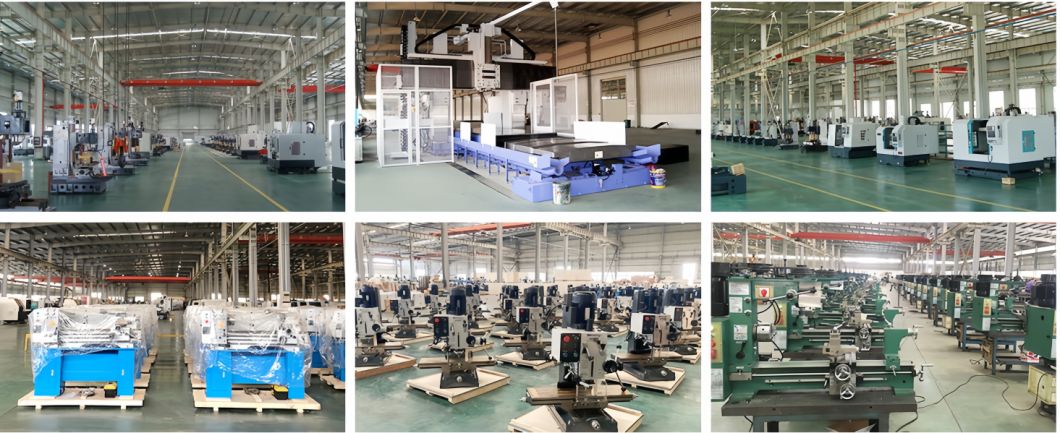

Company Profile:

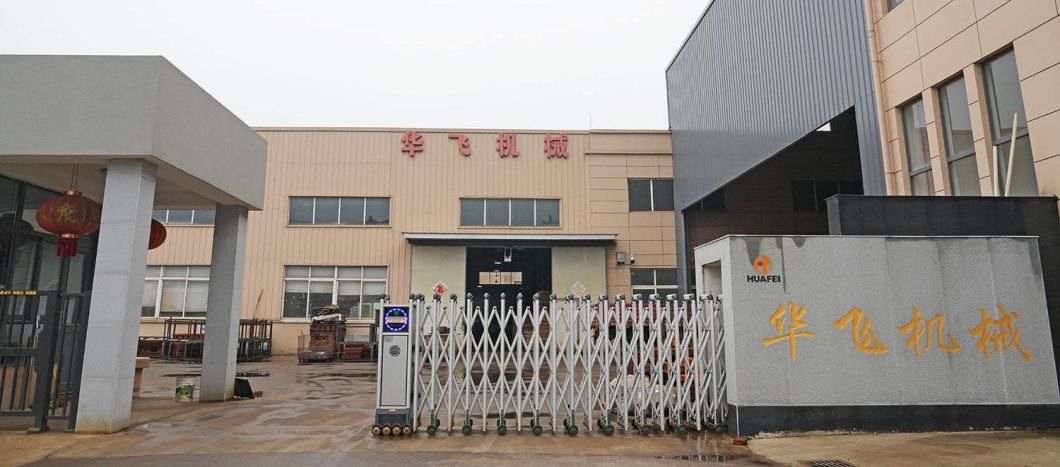

The Yangzhou Huafei General Machine Factory is located in the historical city Yangzhou suburb, already have 20 years history. We specialized produce each kind of series lathe, driling & milling machine, metal circular saw,multi-function lathe.The product exports to USA,Japan,Germany, France, Holland, Russia and U.K.etc,more than 50 countries and the area.
Our factory registered capital 10,000,000 Yuan, fixed asset 20,000,000 Yuan, each kind of specialized production equipment more than 200 sets, staff more than 300 peoples. We have the ability of independent design, making the machinery, the professional contingent and equipment. Besides provides the standard product, we may carry on the design and the production according to the customer request. We have the confidence, have able to produce the quality first-class product and provide the first-class service. We want in front of the customer, their needs is our diligently direction.
Management ldea:
Take the good faith as this, depend on the scientific management, produce the first- class product, struggle the international market.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?

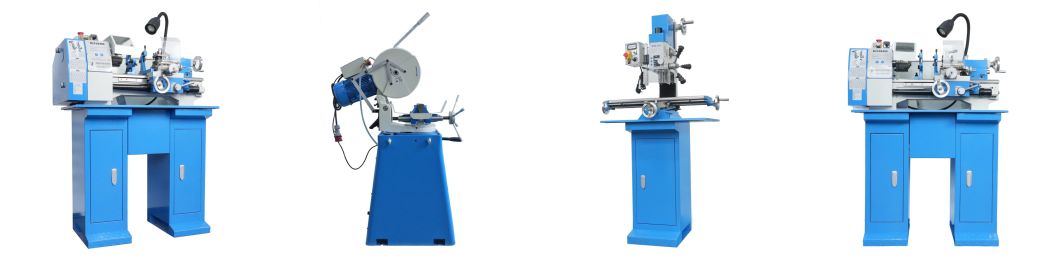

A: We specialized in all kinds of machines ,such as LATHE ,CIRCULAR METAL SAW ,DRILLING & MILLING MACHINE,MULTI-FUNCTION LATHE and so on .
3: What about the quality of the machine? and after-sales service?
A : Our machine warranty period is 3 years,and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set . (Only some low cost machines will be more than 1 set )
