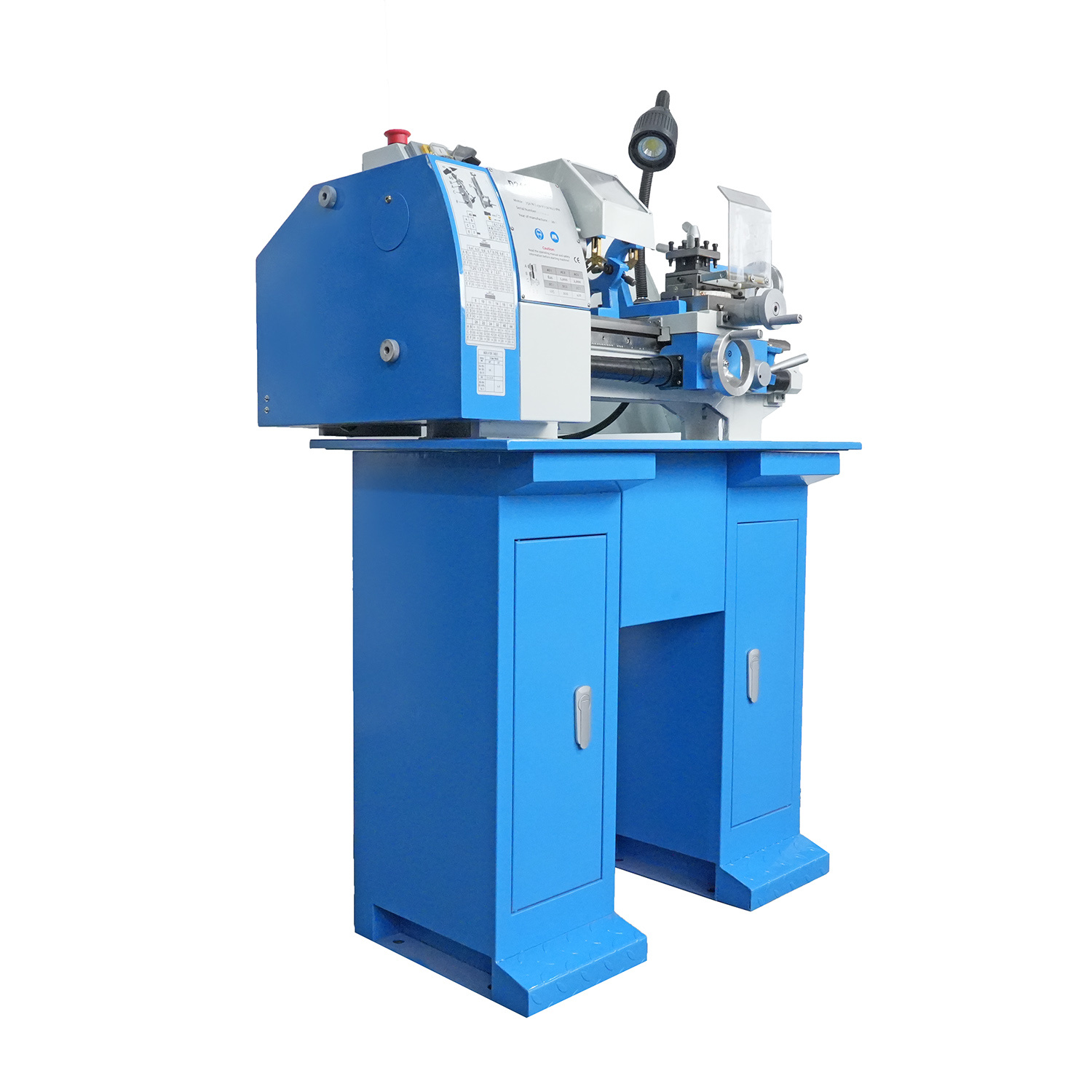

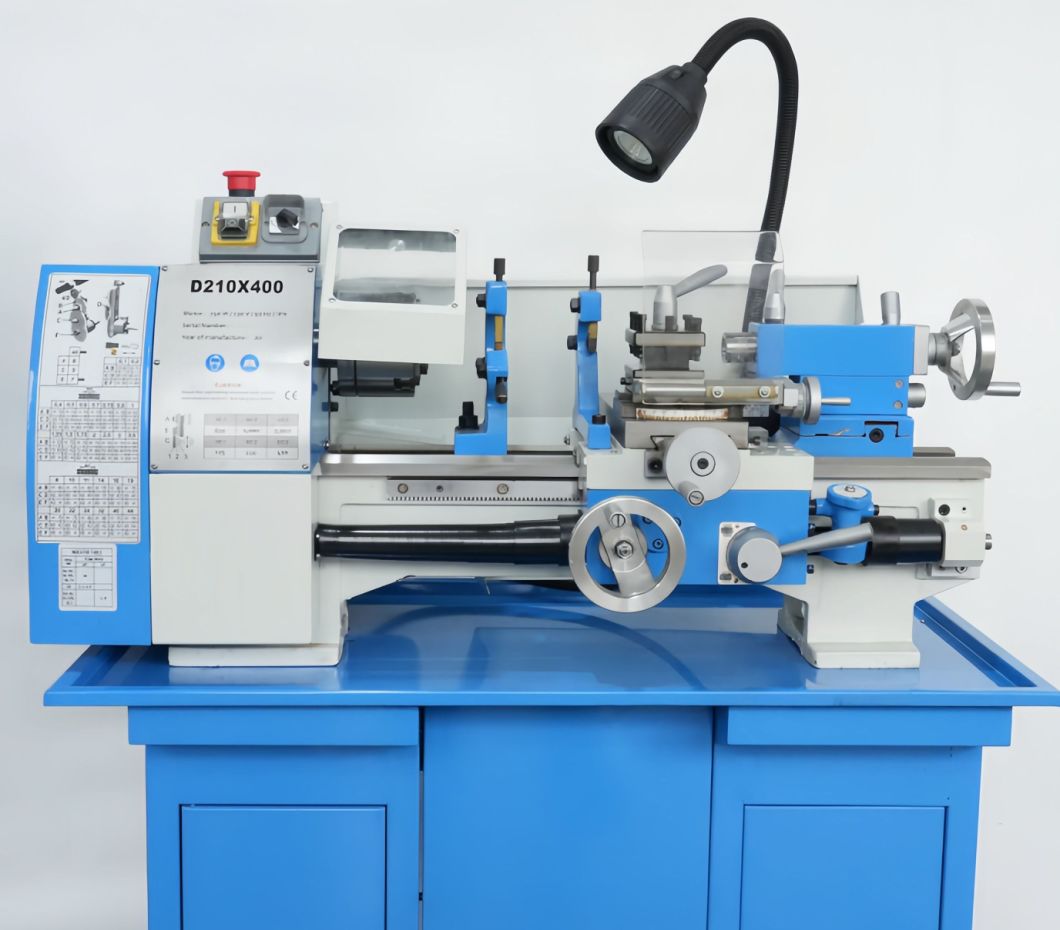

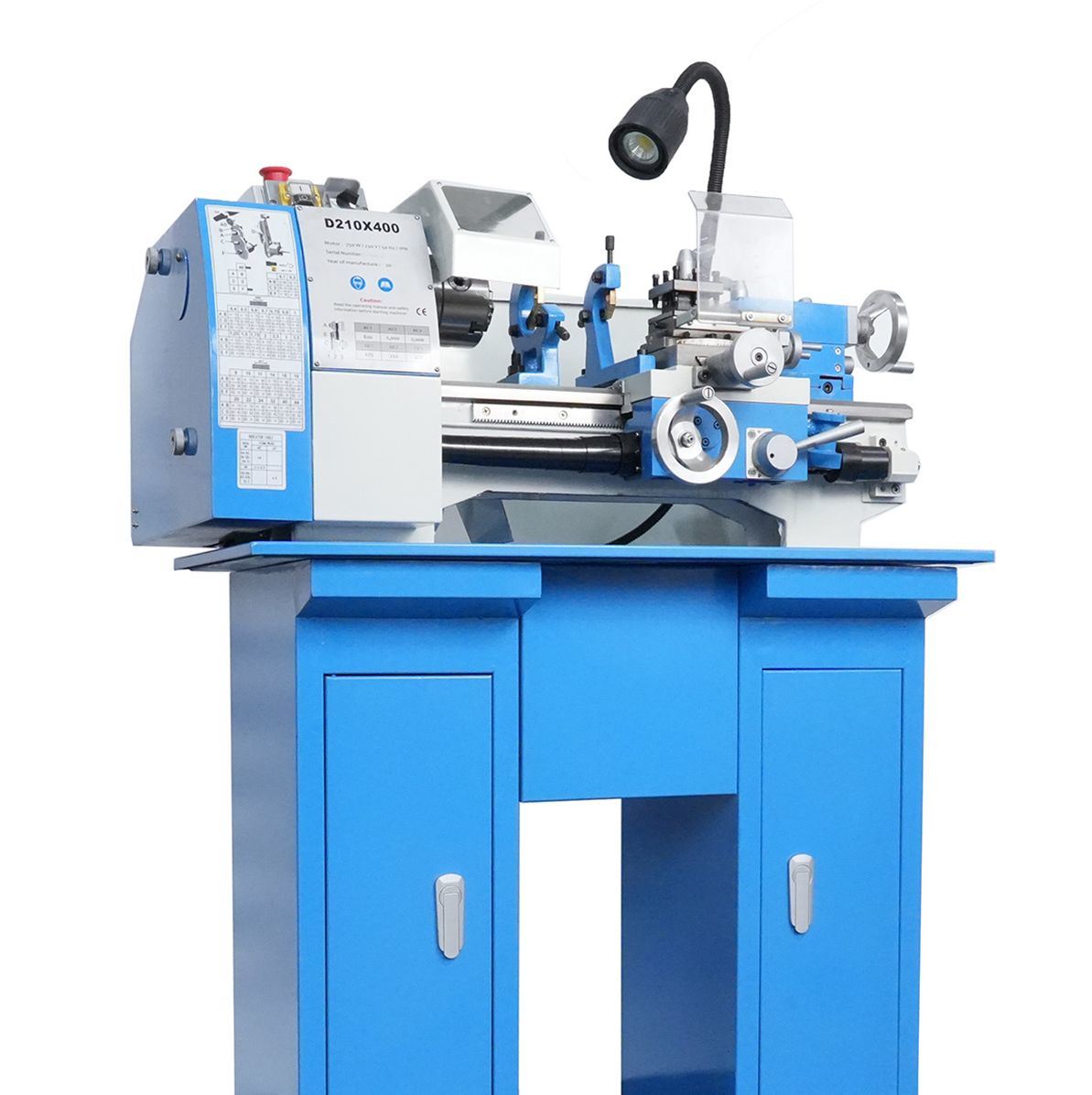

Horizontal Lathe
Chuck Lathe
Horizontal Guide Rail

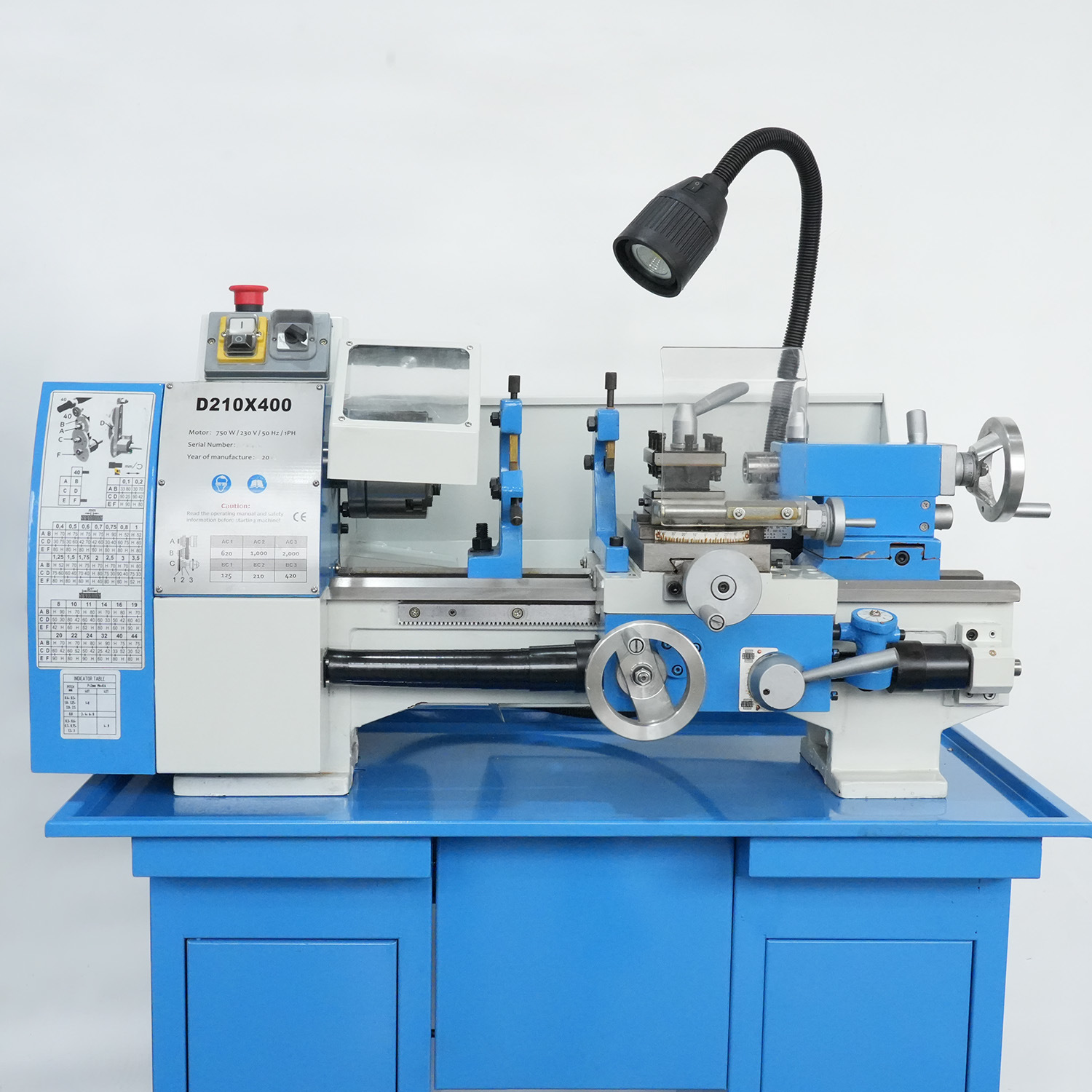

Model | TURN210x400 | TURN250x400 | TURN250x550 |
Max.swing over bed | 210mm | 250mm | 250mm |
Distance between centers | 400mm | 400mm | 400mm |
Spindle bore | 21mm | 21mm | 21mm |
Taper of spindle bore | MT3 | MT3 | MT3 |
Rang of spindle speeds(6 steps) | 125-2000rpm | 125-2000rpm | 125-2000rpm |
Taper of tailstock quill | MT2 | MT2 | MT2 |
Metric threads can be cut | 0.4-3.5mm | 0.4-3.5mm | 0.4-3.5mm |
Inch threads can be cut | 8-44TPI | 8-44TPI | 8-44TPI |
Motor power | 750W | 750W | 750W |
Weight(NW/GW) | 105/125Kg | 110/130Kg | 120/145Kg |
Package size(LxWxH) | 980x560x580mm | 1050 x 560 x 580mm | 1200 x 560 x 580mm |
Standard Accessories
3-jaw chuck Φ100/Φ125 | Splash guard | Chip pan | Lathe chunk protection | Tool holder protection |

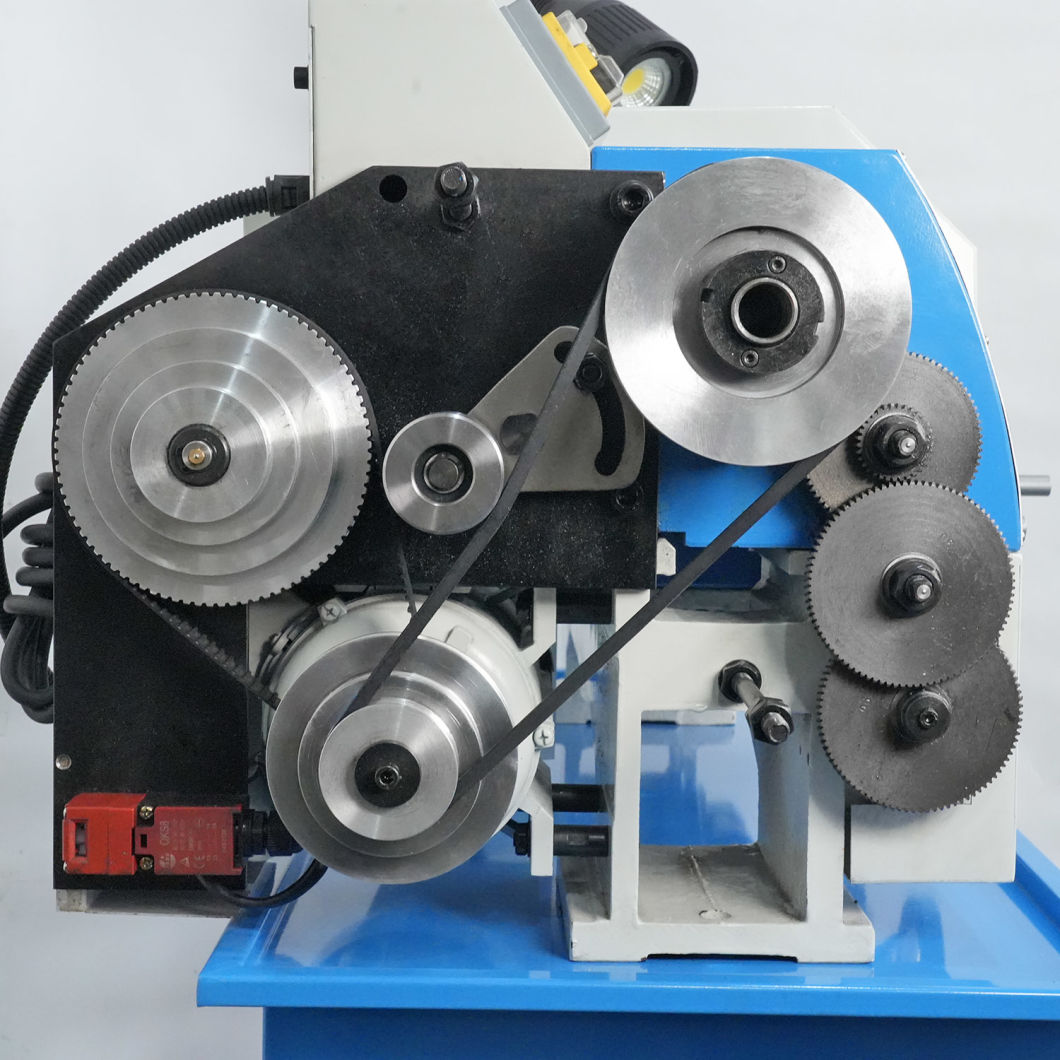

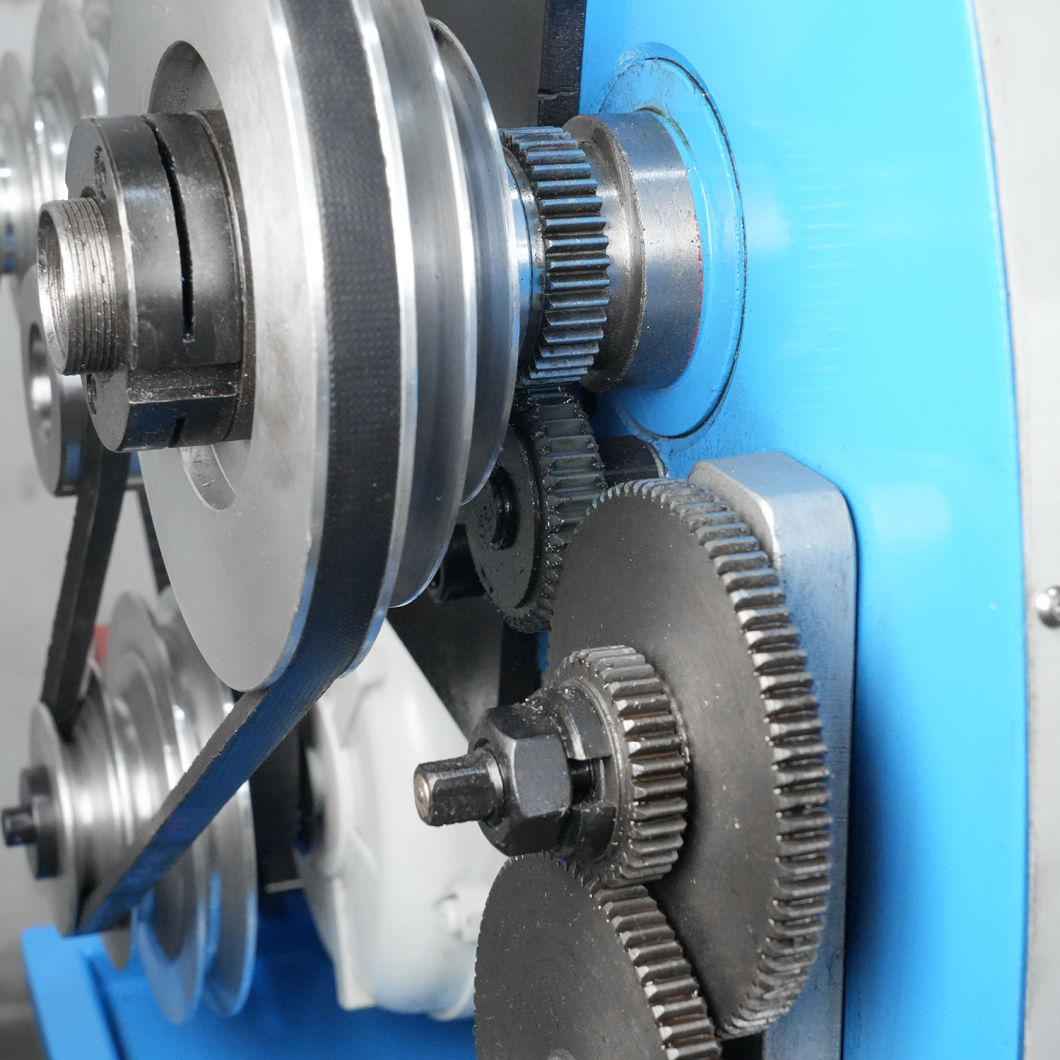

Quadruple tool holder spanner | Steady center MT3/MT2 | HSS cutting tools | Change gears | Tools & Tool box |

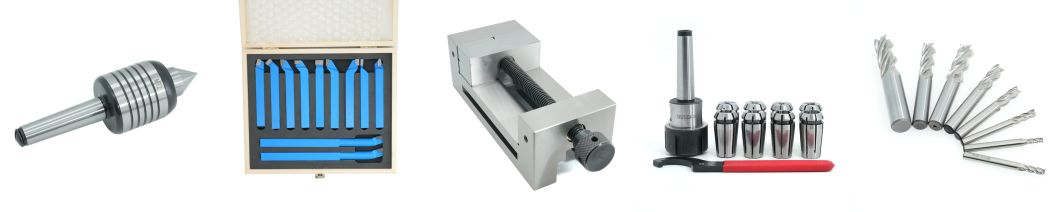

Optional Accessories

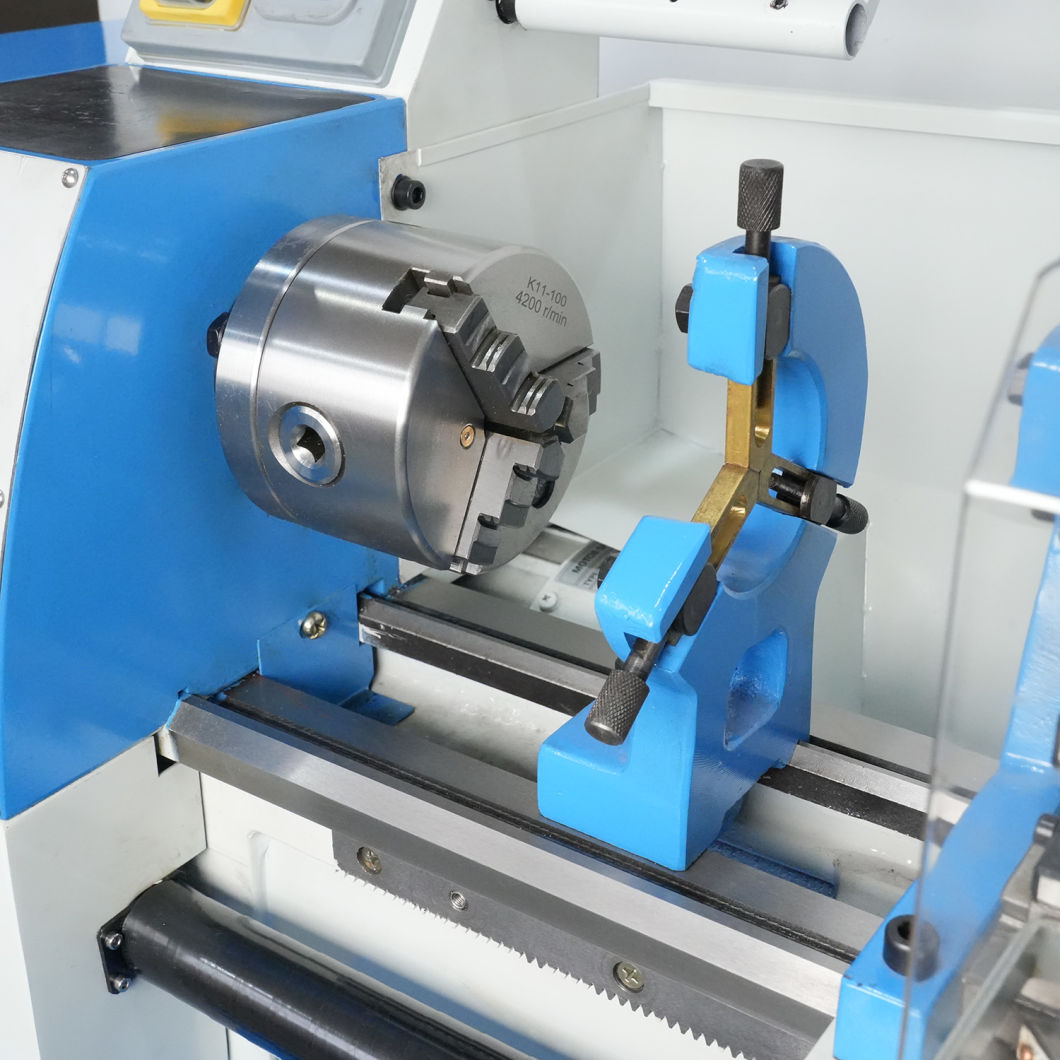

Steady rest | Follow rest | Face plate | Stand | 4-jaw chuck Φ100/Φ125 |

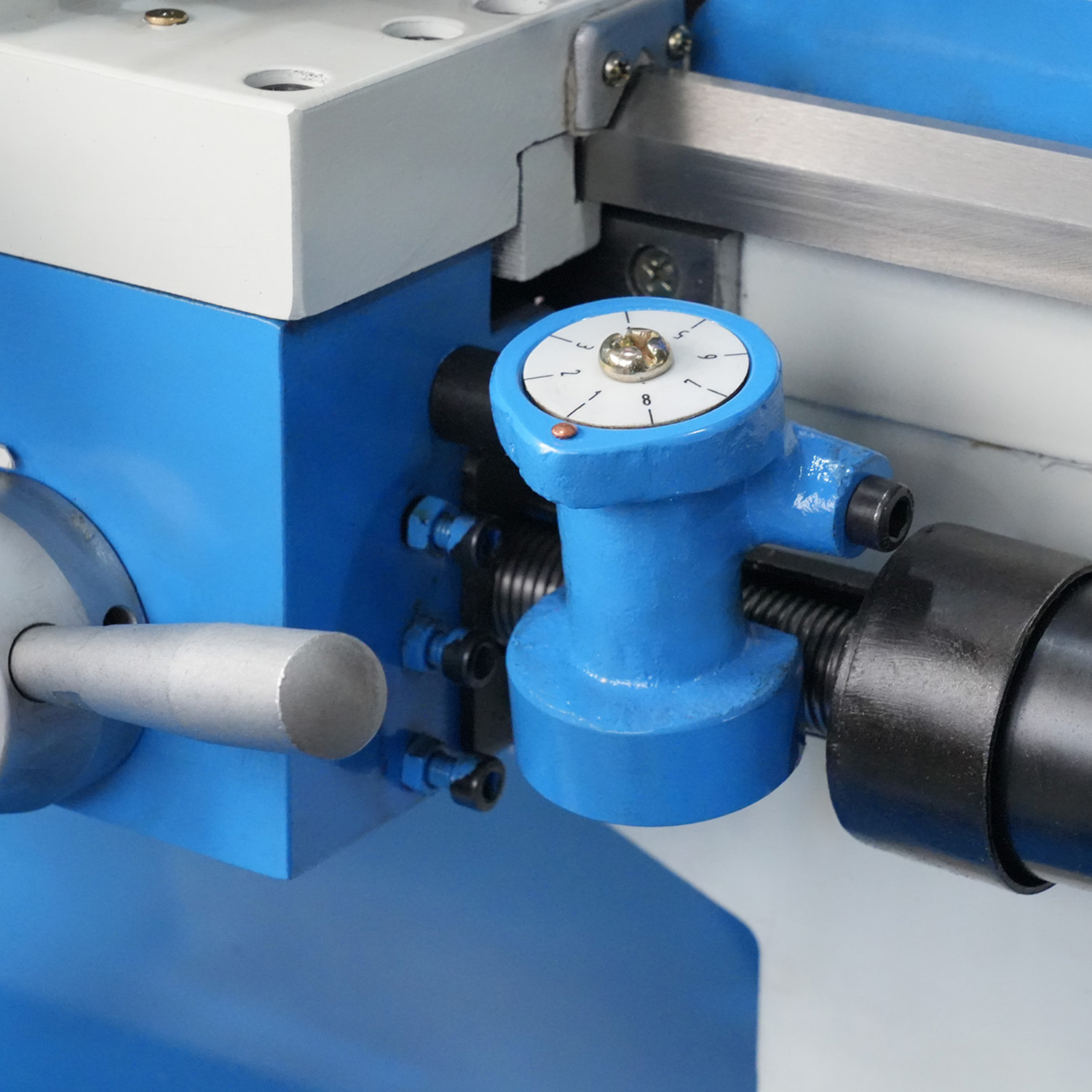

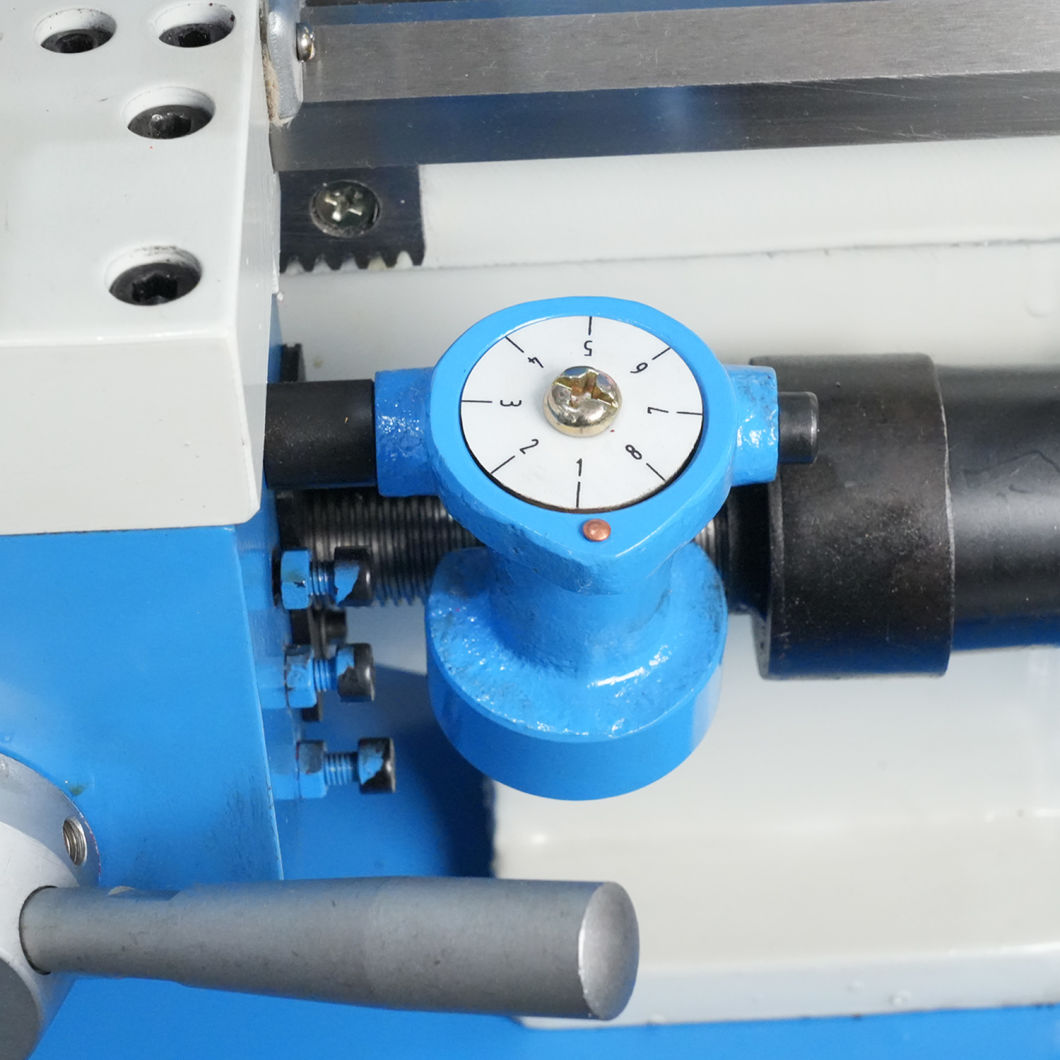

Live center MT3/MT2 | Halogen Lamp | Coolant pump | Quick change tool post | Thread chasing dial |
Feature

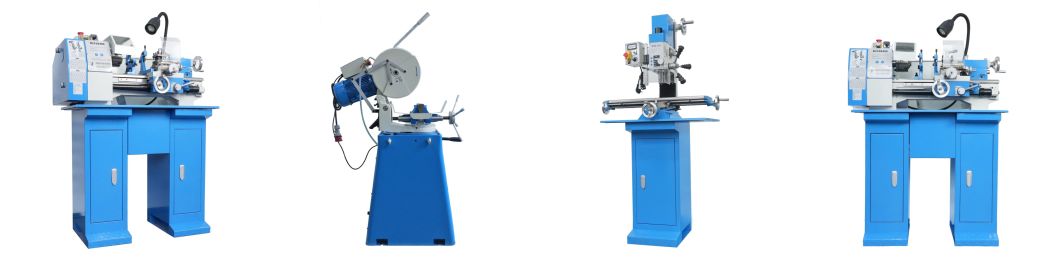

More products

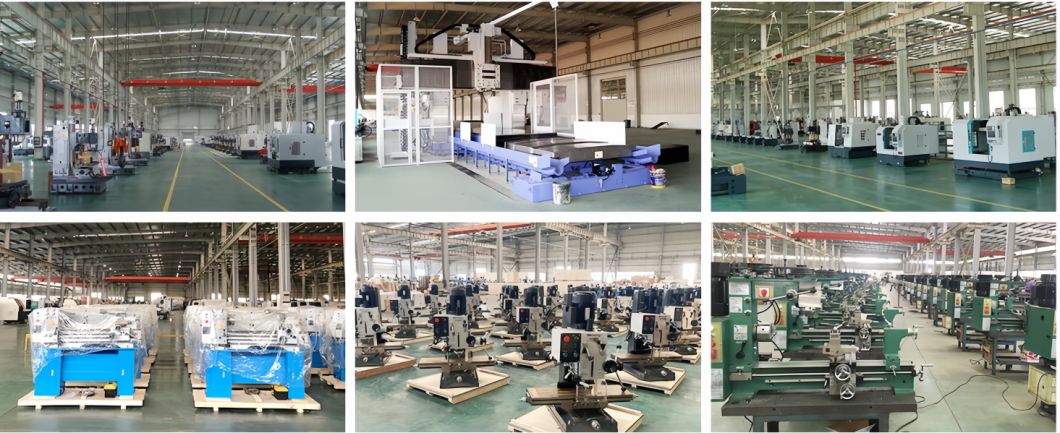

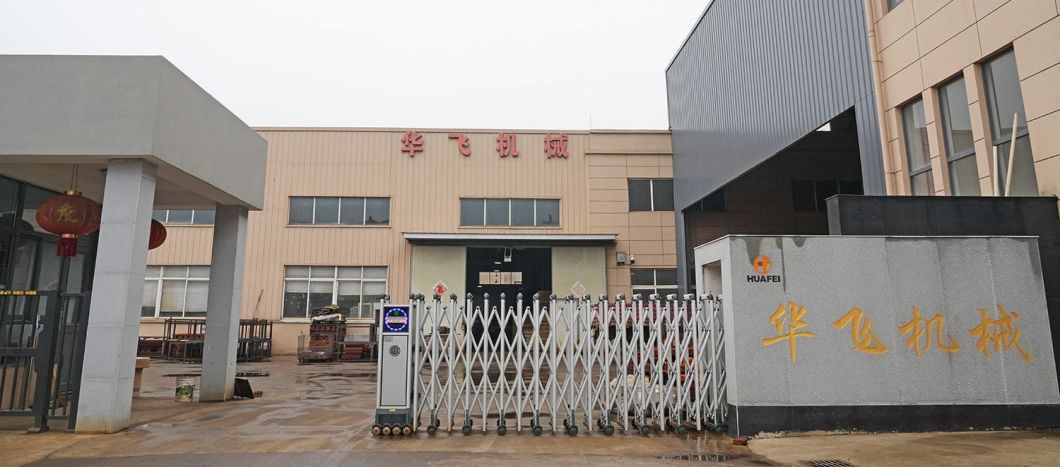

Company Profile
Certifications
Packaging & Shipping
FAQ
