| Model | CS275SA | CS315SA | CS350SA | |||
| Motor power | 2.0Kw/1.4Kw (2/4Pole) | 1.5Kw/0.75Kw(4/8Pole) | 1.5Kw/1.1Kw(4/8Pole ) | |||
| Head rotation | ±45° | ±45° | ±45° | |||
| Max.viceOpening | 110mm | 140mm | 150mm | |||
| Saw blade speed | 96/48rpm | 38/19rpm | 38/19rpm | |||
| Clamping Vice | Double | Double | Double | |||
| Coolant pump Motor | 40W | 40W | 40W | |||
| Saw blade size | Max.diameter | Φ275mm | Φ315mm | Φ350mm | ||
| Bore | Φ40mm | Φ40mm | Φ40mm | |||
| Pin holes | 2XΦ8XPCD55mm | 2XΦ8XPCD55mm | 2XΦ8XPCD55mm | |||
| 0° Max.cutting capacity | Round | 60 | 70 | 120 | ||
| Square | 60X60 | 70X70 | 120X120 | |||
| rectangle | 100X60 | 130X70 | 135X110 | |||
| 45° Max.cutting capacity | Round | 60 | 70 | 110 | ||
| Square | 60X60 | 70X70 | 110X110 | |||
| rectangle | 70X60 | 90X70 | 110X90 | |||
| Packing dimensions(LXWXH) | 1040X560X1470mm | 1100X630X1560mm | 1130X650X1580mm | |||
| NW/GW | 210/245kg | 270/320kg | 290/345kg | |||
- Powerful motor for ample cutting force

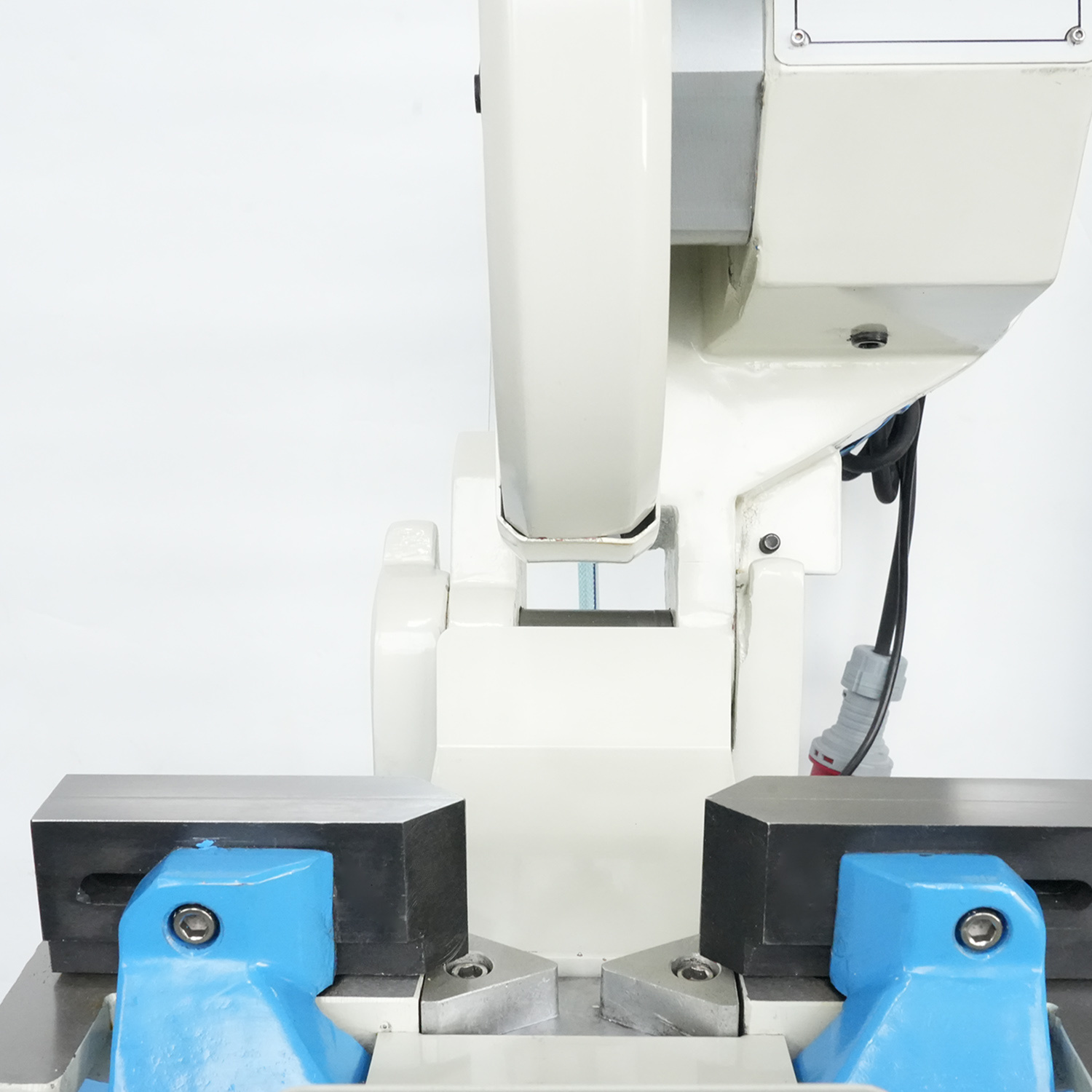

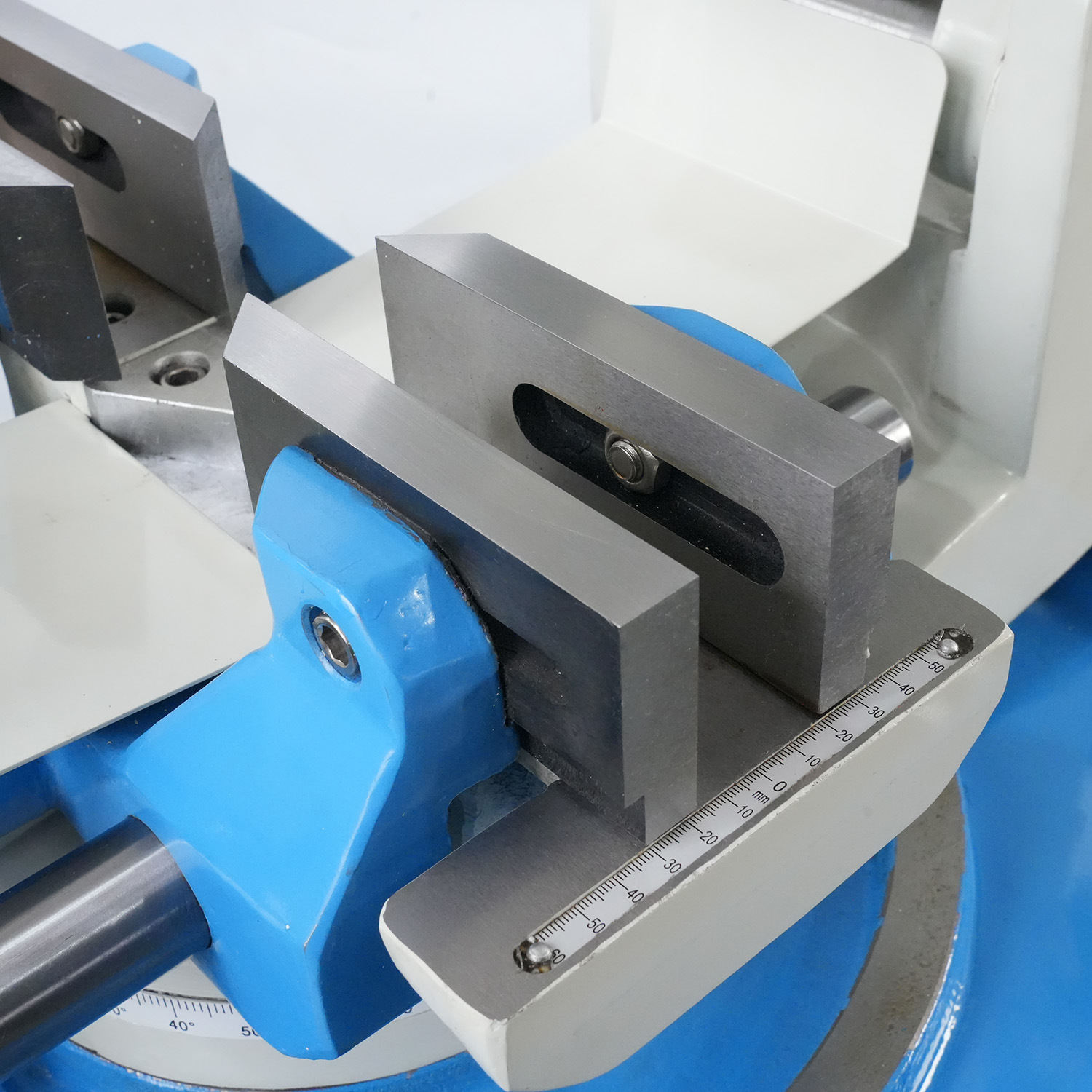

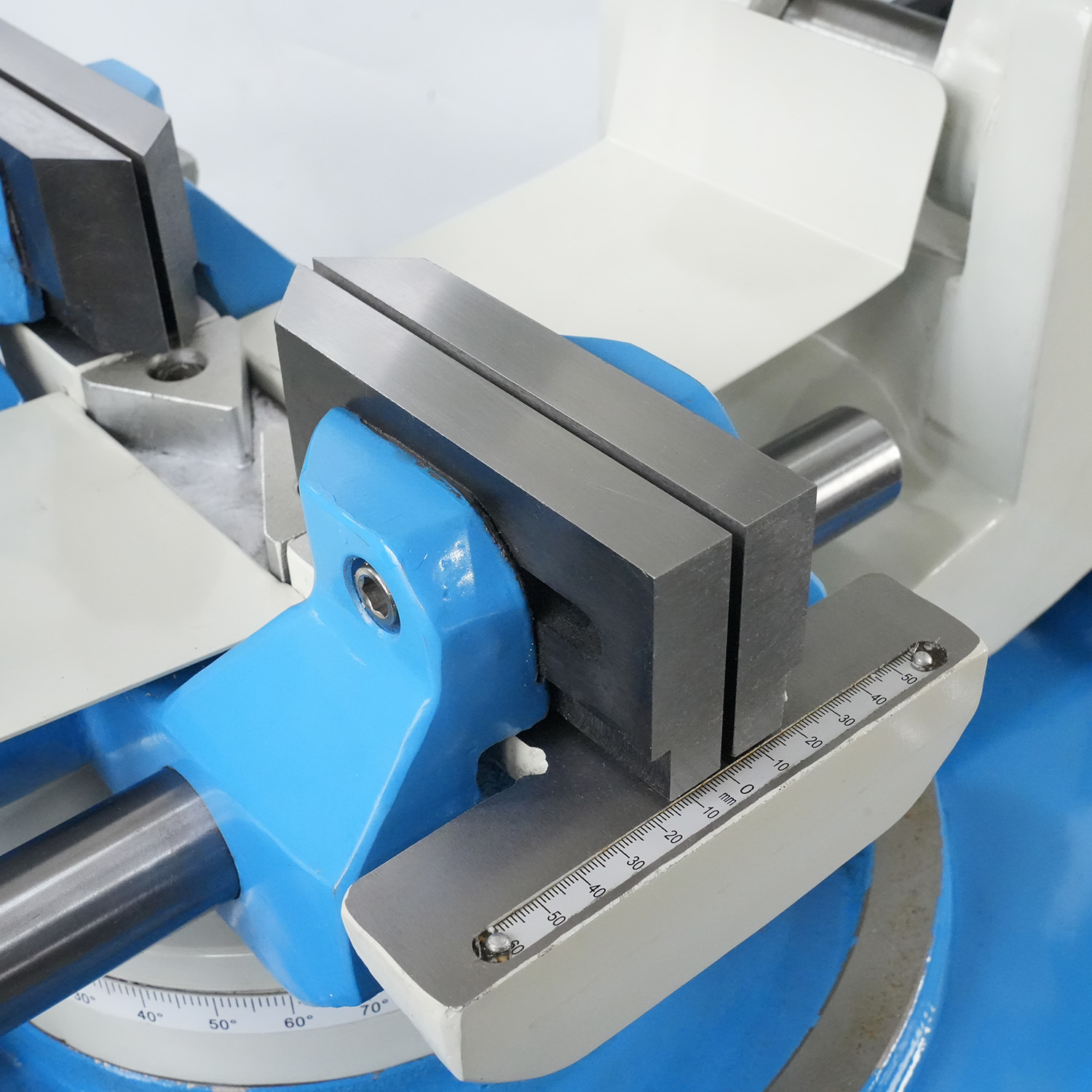

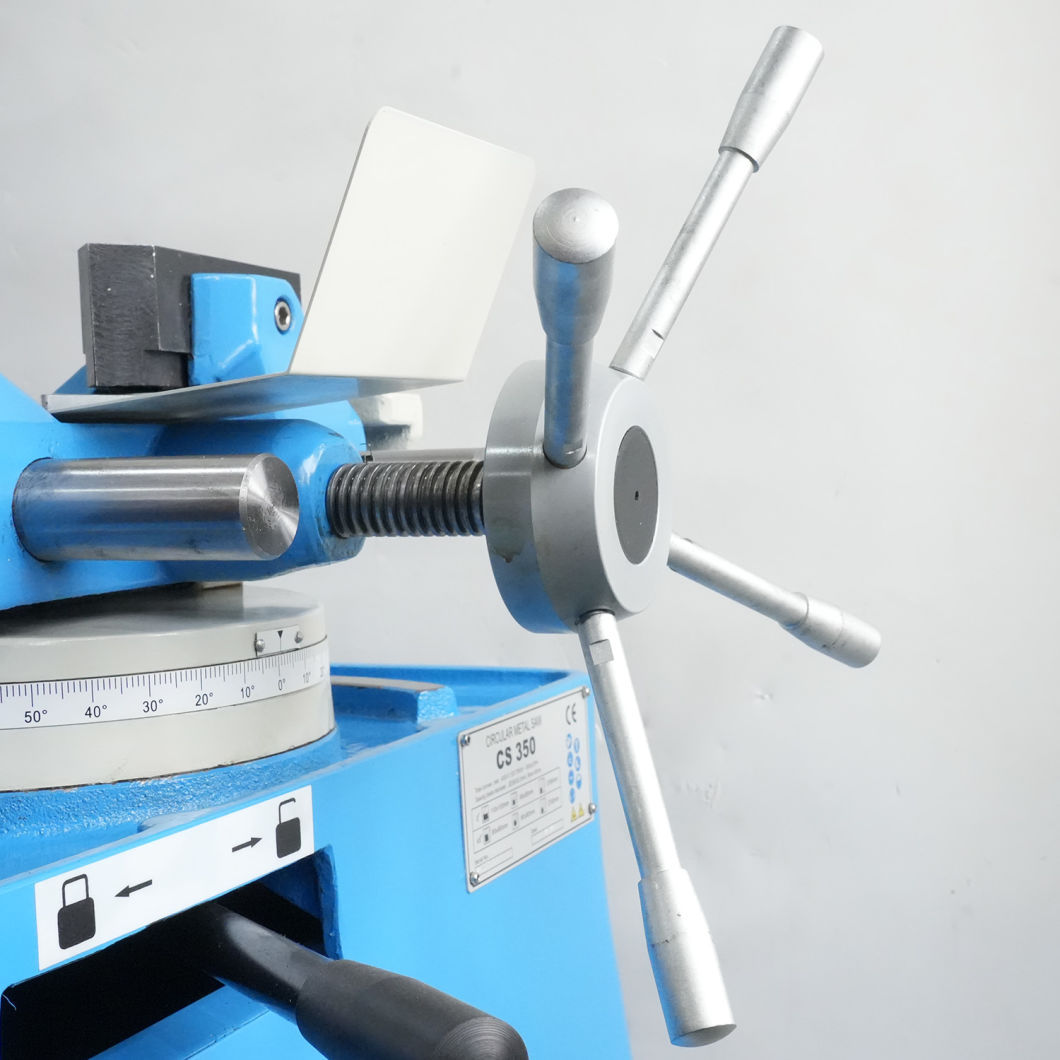

- Centrally tensioned vice with quadruple guiding and individually adjustable jaws
- Optimal cutting position towards the workpiece
- Clamping system with 4 levers
- Sturdy machine substructure with holes for material stand assembly on both sides
- Removable coolant tank with an integrated powerful pump

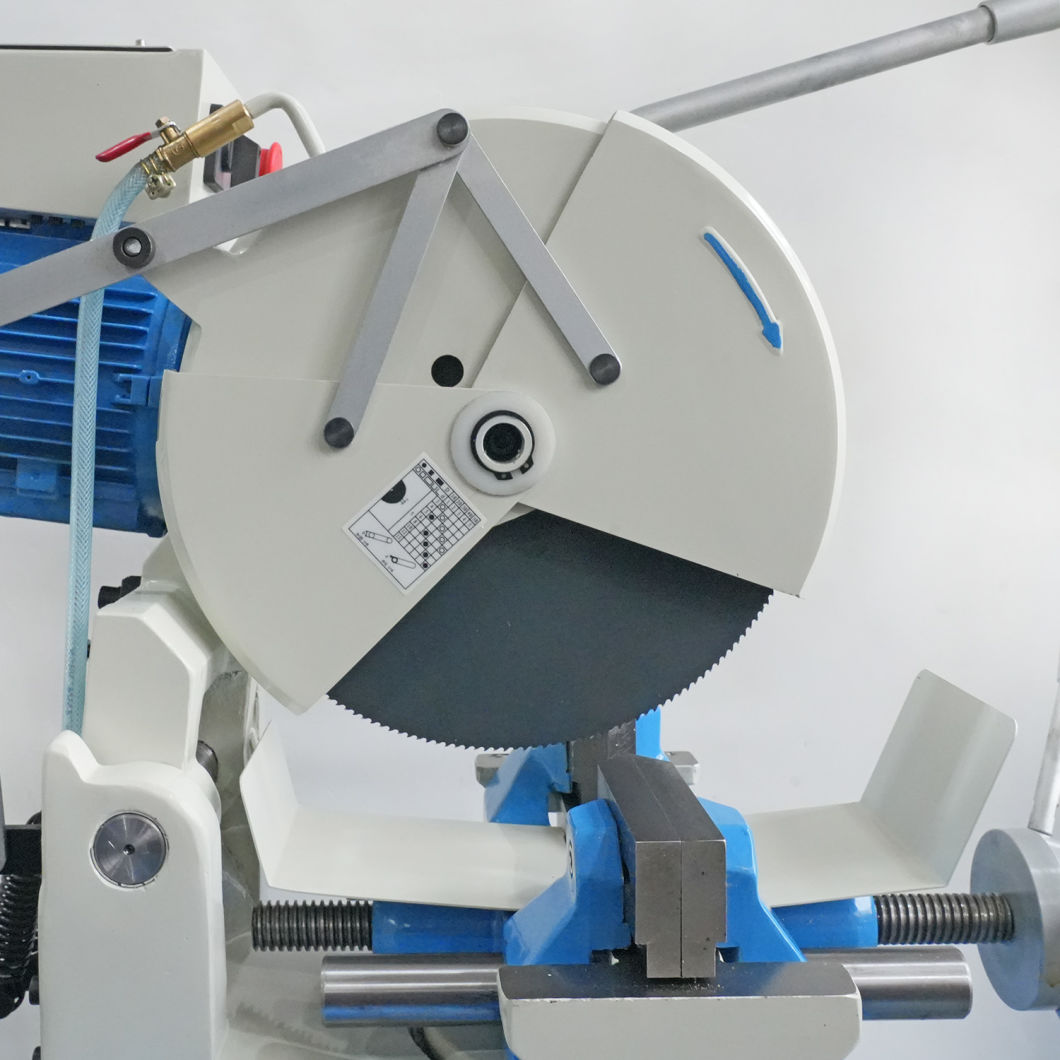

- High-grade, fracture-proof movable protective device with a rapid opening mechanism for optimal cutting protection
- Functional, all-encompassing movable protective device with a rapid opening mechanism
- Long handle for effortless sawing
- Built-in switch with a handle

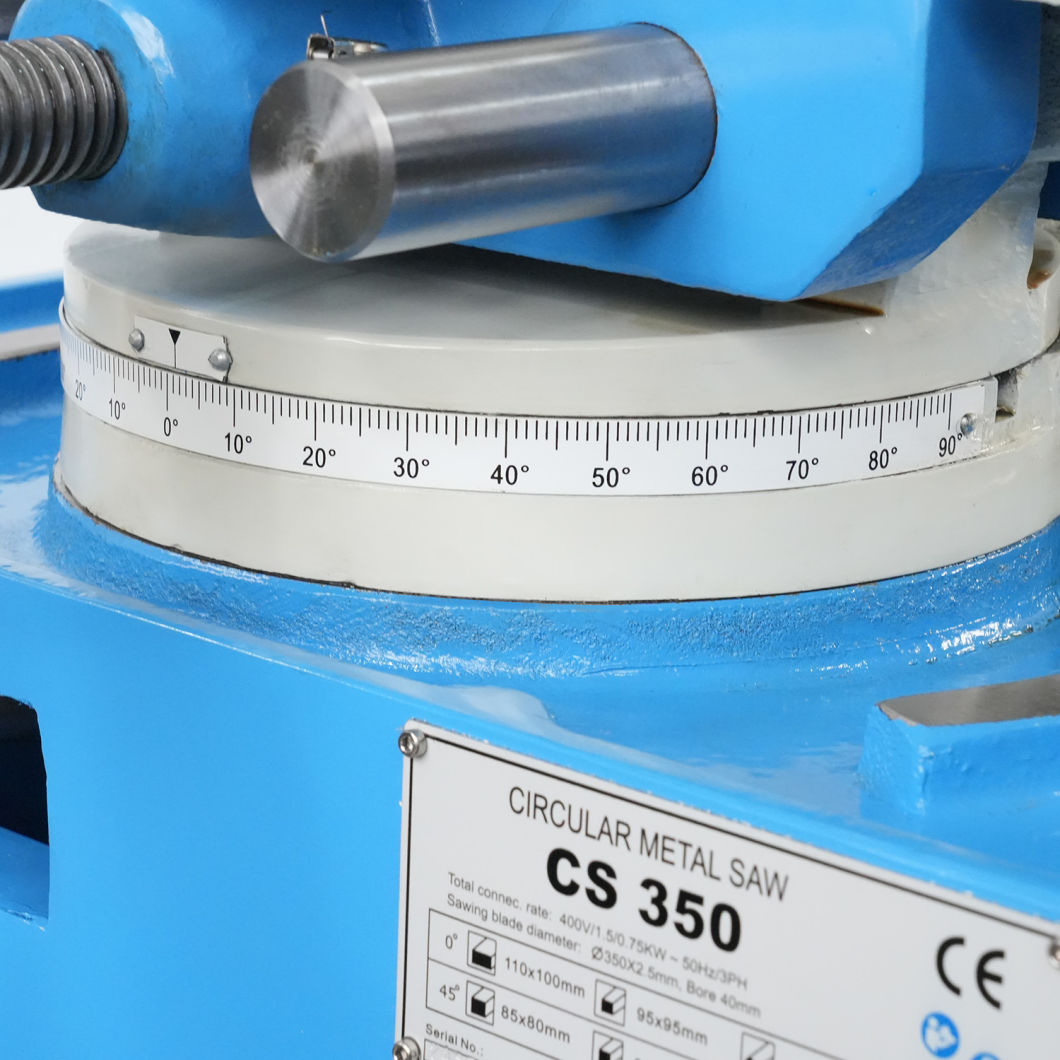

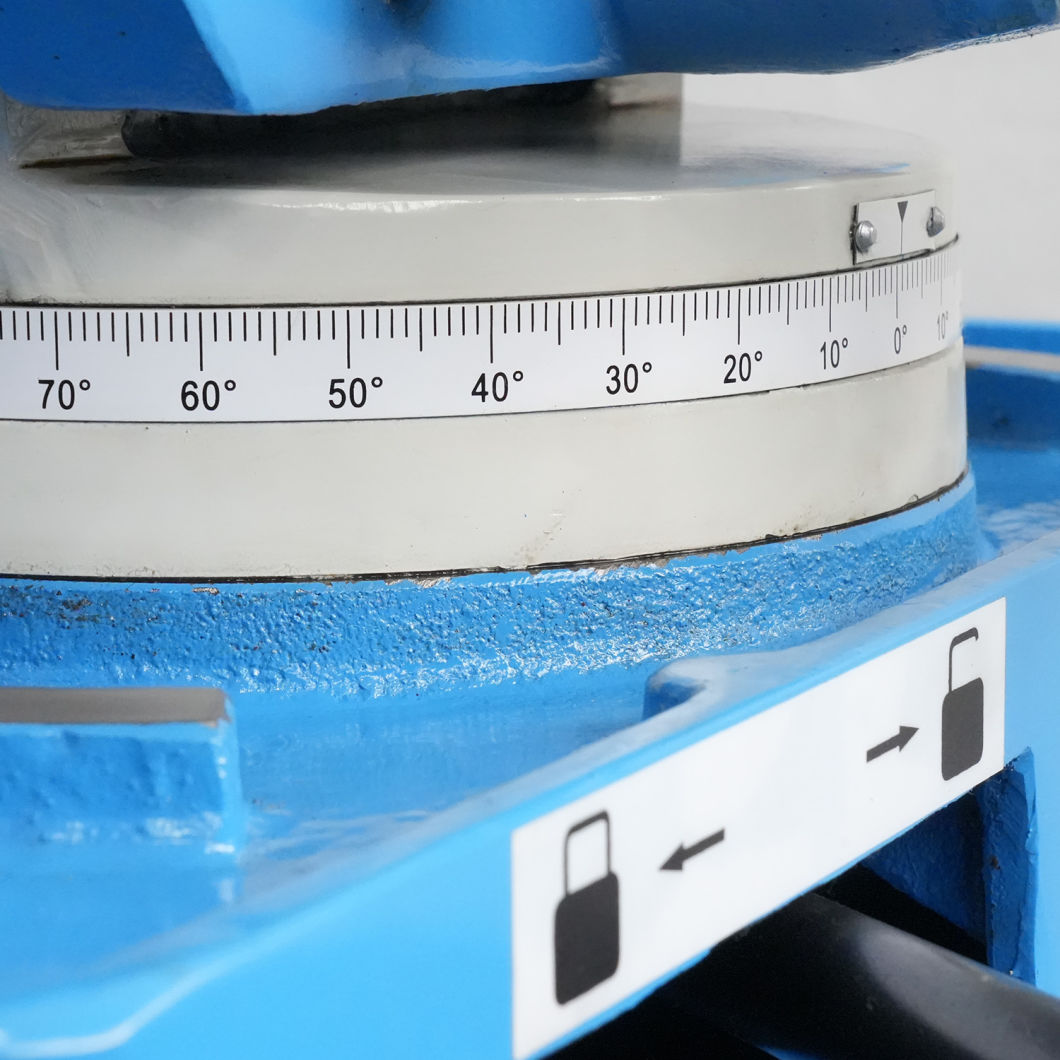

- Well-readable angular scale for precise sawing
- Head swivel range up to ±45°
- Rapid adjustment of the mitre
| Solid Bar | Pitch | Pipe | Pitch |
| Φ10-Φ15 | 4-6 | Thin pipe | 3-6 |
| Φ15-Φ20 | 6-8 | Medium pipe | 6-8 |
| Φ20-Φ30 | 8-10 | Thick wall pipe | 8-12 |
| Φ30-Φ50 | 10-12 | Choose correct pitch of saw blade for perfect cutting | |
| Φ50-Φ70 | 12-14 | ||
| Φ70-Φ80 | 14-16 | ||

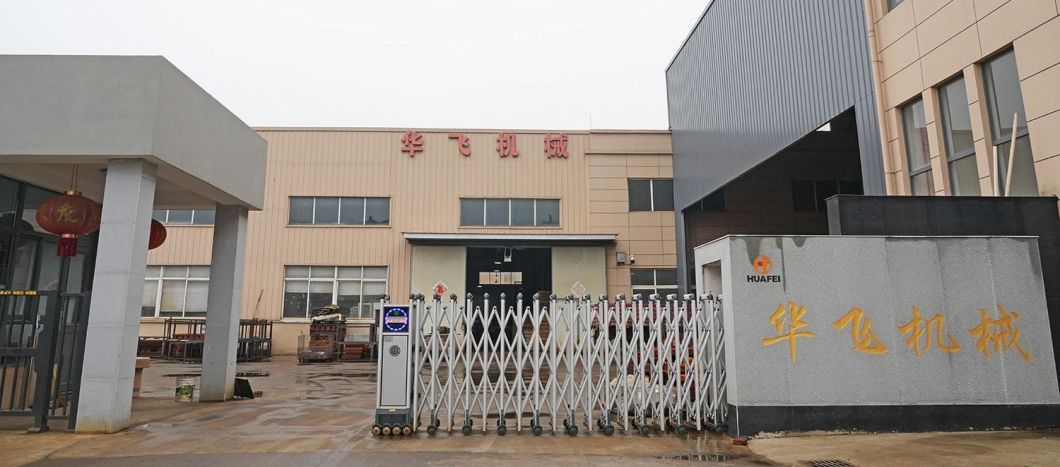

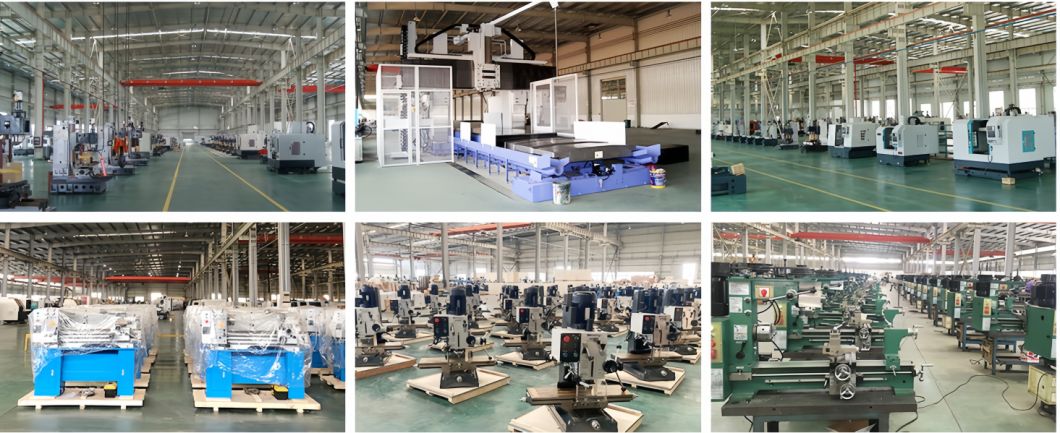

Company Profile:
The Yangzhou Huafei General Machine Factory is located in the historical city Yangzhou suburb, already have 20 years history. We specialized produce each kind of series lathe, driling & milling machine, metal circular saw,multi-function lathe.The product exports to USA,Japan,Germany, France, Holland, Russia and U.K.etc,more than 50 countries and the area.
Our factory registered capital 10,000,000 Yuan, fixed asset 20,000,000 Yuan, each kind of specialized production equipment more than 200 sets, staff more than 300 peoples. We have the ability of independent design, making the machinery, the professional contingent and equipment. Besides provides the standard product, we may carry on the design and the production according to the customer request. We have the confidence, have able to produce the quality first-class product and provide the first-class service. We want in front of the customer, their needs is our diligently direction.
Management ldea:
Take the good faith as this, depend on the scientific management, produce the first- class product, struggle the international market.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?

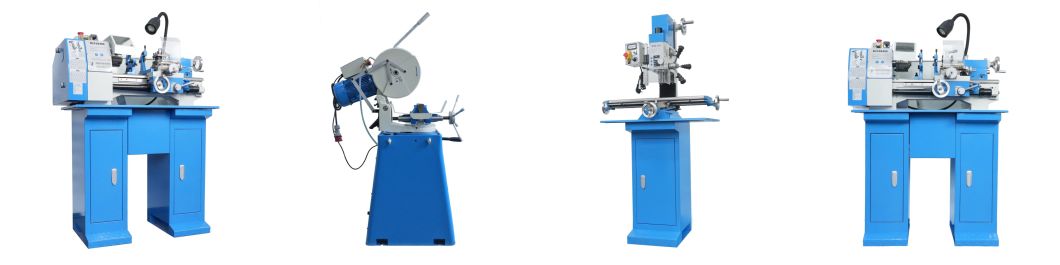

A: We specialized in all kinds of machines ,such as LATHE ,CIRCULAR METAL SAW ,DRILLING & MILLING MACHINE,MULTI-FUNCTION LATHE and so on .
3: What about the quality of the machine? and after-sales service?
A : Our machine warranty period is 3 years,and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set . (Only some low cost machines will be more than 1 set )
